FLUKE-772 FLU

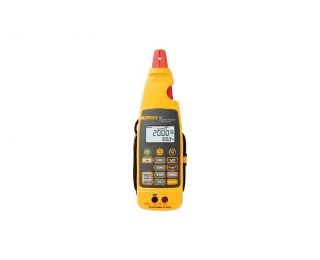

Picture of FLUKE-772 FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
FLUKE-772
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,529.99 / EA

Description

Brand Name

Fluke®

Type

Milliamp Process

Alternate Supplier #

Grainger - 4FFG4
Fastenal - 0745558

Description

Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke® 772 mA Clamp Meter expand upon the capabilities of the popular 771 mA Clamp Meter, adding loop power and mA sourcing to the troubleshooting and process calibration capabilities in all Fluke® mA clamp meters.
Fluke® Clamp Meter, Milliamp Process, 0 to 100 mA Electrical Rating, Backlit Display, (4) 1.5 V AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 11.61 in L x 5.91 in W x 2.95 in H Dimensions, Plastic

Application

For use to measure output signals without breaking the loop or bringing down the system

Standards

ECCN EAR99 | CE Certified | FCC Approved | Meets EN 61326-1 | N10140 Registered | PROP65: This product is in Compliant with PROP65; it is not known to contain any chemicals associated with this regulation

Features

  • Hard plastic enclosure type
  • Measurement spotlight illuminates hard to see wires in dark enclosures
  • Best in class 0.2% accuracy
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measure 4 to 20 mA signals without "breaking the loop"
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements
  • -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm Max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, random 2 g, 5 to 500 Hz vibration,1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V Alkaline, IEC LR6, 12 hours in mA source into 500 ohms power, battery life
  • Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement
  • 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range

Includes

(4) AA Alkaline Batteries (Installed), Soft Carrying Case, TL75 Test Leads, AC 72 Detachable Clip, TL940 Mini Hook Test Leads, Instruction Sheet, Hanging Tool With Hook and Loop Strap

Specifications

Country of Origin:CN
Dimensions:11.61 in L x 5.91 in W x 2.95 in H
Display Type:Backlit
Electrical Ratings:0 to 100 mA
Material:Plastic
Operating Temperature:-10 to 50 deg C
Power Source:(4) 1.5 V AA Alkaline Batteries
