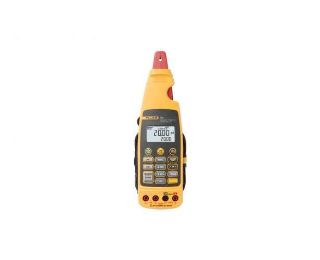

Picture of FLUKE-773 FLU
Actual Product May Vary From Image

FLUKE-773 FLU

Fluke® FLUKE-773 Milliamp Process Clamp Meter, 0 to 30 VDC, 0 to 100 mA, Backlit Display
Manufacturer: Fluke
Manufacturer part number: FLUKE-773
Availability: Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 1 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,830.99

Product Details

Brand Name

Fluke®

Type

Milliamp Process

Alternate Supplier #

Grainger - 4FFG6

Description

Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke® 773 mA Clamp Meter is Fluke®'s premier mA Clamp Meter, providing you with the best in troubleshooting and process calibration power.
Fluke® Clamp Meter, Milliamp Process, 0 to 30 VDC, 0 to 100 mA Electrical Rating, Backlit Display, 0.2% + 2 Counts Voltage Accuracy, (4) 1.5 V AA Alkaline Batteries Power Source, -10 to 50 deg C Operating, 11.61 in L x 5.91 in W x 2.95 in H Dimensions, Plastic

Application

For use to measure output signals without breaking the loop or bringing down the system

Standards

ECCN 3A992 | CE Certified | FCC Approved | Meets EN 61326-1 | N10140 Registered | PROP65: This product is in Compliant with PROP65; it is not known to contain any chemicals associated with this regulation

Features

  • Hard plastic enclosure type
  • Measurement spotlight illuminates hard to see wires in dark enclosures
  • Best in class 0.2% accuracy
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measure 4 to 20 mA signals without "breaking the loop"
  • Detachable clamp with extension cable for measurements in tight locations
  • Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically change the 4 to 20 mA output for remote testing
  • Power saving features, auto-off, backlight timeout extend battery life
  • Hold function captures and displays changing measurements
  • -25 to 60 deg C storage temperature, IP 40 IP, 0.177 in or 4.5 mm Max diameter of measurable conductor, < 90% at < 30 deg C, < 75% at 30 to 55 deg C operating humidity, 0 to 2000 m operating altitude, random 2 g, 5 to 500 Hz vibration, 1 meter drop test shock, 0.01% deg C temperature coefficient, (4) AA 1.5 V alkaline, IEC LR6, 40 hours typical power, battery life
  • Simultaneous mA in-circuit measurement with 24 V loop power for powering and testing transmitters, source 4 mA to 20 mA signals for testing control system I/O or I/Ps, measure 4 mA to 20 mA signals with in-circuit measurement
  • Scaled mA output provides a continuous mA signal that corresponds to the 4 mA to 20 mA signal measured by the mA clamp, enables milliamp signal logging to a separate logging device without breaking the loop
  • Output mA signal enables a logging DMM or other device to record the 4 to 20 mA signal without breaking the loop, apply a mA input signal to a device and measure its 4 to 20 mA output on devices such as valves or mA isolators voltage output linear ramp or 25% step output, automatically change the voltage output for remote testing
  • 0 to 20.99 mA at 0.2% + 2 counts accuracy, 21.0mA to 100.0 mA at 1% + 5 counts accuracy measuring range

Includes

(4) AA Alkaline Batteries (Installed), Soft Carrying Case, TL75 Test Leads, AC 72 Detachable Clip, TL940 Mini Hook Test Leads, Instruction Sheet, Hanging Tool With Hook and Loop Strap

Specifications

Dimensions:11.61 in L x 5.91 in W x 2.95 in H
Display Type:Backlit
Electrical Ratings:0 to 30 VDC, 0 to 100 mA
Material:Plastic
Operating Temperature:-10 to 50 deg C
Power Source:(4) 1.5 V AA Alkaline Batteries
Voltage Accuracy:0.2% + 2 Counts
