FLUKE-9040 FLU

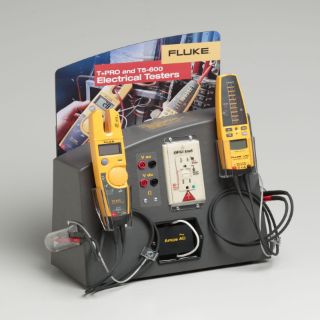

Picture of FLUKE-9040 FLU
Actual Product May Vary From Image

Product Details

Manufacturer:
Fluke
Manufacturer part number:
FLUKE-9040
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$453.99 / EA

Description

Brand Name

Fluke®

Alternate Supplier #

Grainger - 2NV55

Description

The Fluke® 9040 is effective for measuring phase rotation in all areas where 3-Phase supplies are used to feed motors, drives and electrical systems. The Fluke® 9040 is a rotary field indicator and can provide clear indication of the 3-Phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 VAC) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Fluke® Phase Rotation Indicator, 40 to 700 VAC, 15 to 400 Hz, Safety Rating: EN 61010/EN 61557-7 Electrical with CAT III 600 V/CAT IV 300 V, Motor Rotation: Yes, Phase Rotation: Yes, Phase Voltage Present Indicator: Yes, Clear

Application

For detect the rotary field of 3-Phase systems, commercial and industrial applications

Standards

ECCN EAR99/EN 61010 | EN 61557-7 Electrical Safety/CAT III 600 V/CAT IV 300 V

Features

  • Effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems
  • Rotary field indicator and can provide clear indication of the 3-Phase via an LCD display and the phase rotation direction to determine correct connections
  • Allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range
  • Test probes have a variable clamping range for safe contact in industrial sockets
  • Indication of phase rotation, clear LCD display, no battery required
  • Continuous operating timer, 40 deg C operating temperature, IP 40 dust/water resistance, 1 mA nominal test current
  • 124 mm x 61 mm x 27 mm

Includes

(3) Black Self-Retaining Test Probes, Alligator Clip, User Manual

Specifications

Color:Clear
Country of Origin:CN
Frequency Rating:15 to 400 Hz
Motor Rotation:Yes
Phase Rotation:Yes
Phase Voltage Present Indicator:Yes
Safety Rating:EN 61010/EN 61557-7 Electrical with CAT III 600 V/CAT IV 300 V
Voltage Rating:40 to 700 VAC
