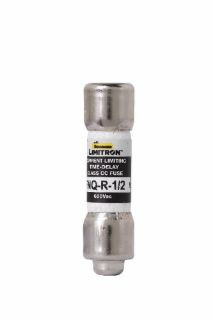

Actual Product May Vary From Image

FNQ-R-1/2 BSF

Name: FNQ-R-1/2 BSF
Brand: Bussmann
SKU: FNQ-R-1/2 BSF
Price: 73.61 USD
Availability: InStock

Bussmann CC-Tron® FNQ-R-1/2 Time Delay Fuse, 500 mA, 600 V, 200 kA Interrupt, CC Class, Cylindrical Body

Manufacturer: Bussmann

Manufacturer part number: FNQ-R-1/2

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	7
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$73.61

Qty:

Product Details

Brand Name

Bussmann

Type

Advanced Protection Current Limiting High Inrush Low Voltage Time Delay

Alternate Supplier #

Grainger - 1CT93

Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann CC-Tron® Time Delay Fuse, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 500 mA, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Application

Industrial Facilities and Factories, Safety and Security Systems, Branch Circuits, Line Protection, Small Control Transformers, Isolated and In-Line Fuse Holders Applications

Standards

Features

Time delay compatible with inrush characteristic of small control transformers
Current limitation at class CC levels provides maximum component short circuit current rating protection
200 kA interrupt rating provides high ratings for control circuit locations
Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
Nickel plated brass end caps

Specifications

Amperage Rating:	500 mA
Body Size:	13/32 in Dia x 1-1/2 in L
Body Type:	Cartridge
Class:	CC
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Material:	Melamine
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	12 s at 200%
Series:	FNQ-R
Terminal Type:	Ferrule
Voltage Rating:	600 V
