FRN1C2408SBUF APN

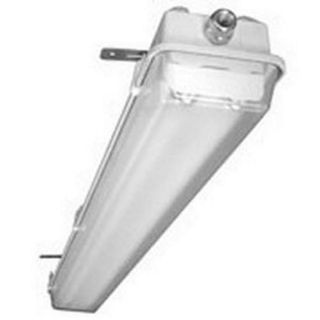

Name: FRN1C2408SBUF APN
Brand: Appleton
SKU: FRN1C2408SBUF APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

FRN1C2408SBUF

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Non-Metallic Enclosed and Gasketed

Description

FR Series enclosed and gasketed luminaires are designed for use in locations where a high degree of corrosion resistance is required. These nonmetallic fluorescent fixtures are manufactured of high-impact fiberglass reinforced polyester making them ideal for areas where high humidity or water vapor is present.

Appleton® Luminaire, Non-Metallic Enclosed and Gasketed, Series: FR Series, 120 to 277 V, 64 W Fixture, T8 Fluorescent Lamp, 32 W Lamp, 2 Lamps, Solid State Electronic Ballast, Acrylic Lens, 2850 Lumens, Ceiling Mounting, Fiberglass Reinforced Polyester Housing Material, White Housing Finish, 50 in L x 8-1/4 in W x 5-1/2 in H Dimensions

Application

For use in wet locations, areas where high humidity or water vapor are present, indoors or outdoors in protected locations, meat or food processing plants, dairy or drug plants, breweries, kitchens, chemical plants, car washes, laundries and parking garages

Standards

CEC Listed | CSA Certified | cUL Listed | NEC Listed | UL Listed

Features

Low operating costs provide more lumens/W than incandescent fixtures
Housing is smooth, seamless, 1-piece injection molded, a compressible, one-piece, non-thixotropic polyol gasket is bonded to the housing around the entire perimeter, it forms a continuous tight seal with the lens to keep out dirt, vapor and moisture
Lens comes in high-impact polycarbonate plastic or impact-resistant acrylic
Enclosure is rated at IP65, dustproof and protected against water spray
Fixtures are washable, non-conductive and corrosion-resistant
Lens is securely clamped to fixture using six captive corrosion-proof molded celcon tension latches, lens is impact-resistant acrylic to protect lamps against breakage and protect work area from broken lamp glass
Electrical components are mounted on a metallic wireway
Reflector is supported by internal safety springs to simplify installation and servicing

Includes

1/2 in NPT Conduit Single Entry

Specifications

Ballast Type:	Solid State Electronic
Country of Origin:	MX
Dimensions:	50 in L x 8-1/4 in W x 5-1/2 in H
Fixture Wattage:	64 W
Housing Finish:	White
Housing Material:	Fiberglass Reinforced Polyester
Lamp Type:	T8 Fluorescent
Lamp Wattage:	32 W
Lens Type:	Acrylic
Lumens:	2850 Lumens
Mounting Type:	Ceiling
Number of Lamps:	2
Series:	FR Series
Voltage Rating:	120 to 277 V
