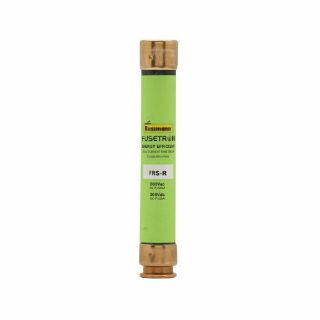

Actual Product May Vary From Image

FRS-R-1/2 BSF

Name: FRS-R-1/2 BSF
Brand: Bussmann
SKU: FRS-R-1/2 BSF
Price: 102.58 USD
Availability: InStock

Bussmann Fusetron™ FRS-R-1/2 Advanced Protection Current Limiting Energy Efficient Low Voltage Time Delay Fuse, 500 mA, 600 VAC/300 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: FRS-R-1/2

Availability: Expected Leadtime 21 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	8
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$102.58

Qty:

Product Details

Brand Name

Bussmann

Type

Advanced Protection Current Limiting Energy Efficient Low Voltage

Alternate Supplier #

Grainger - 6F228

Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

Bussmann Fusetron™ Time Delay Fuse, Advanced Protection Current Limiting Energy Efficient Low Voltage, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 500 mA, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size

Application

Branch Circuit, Power Panelboard, Motor Control Centers, Combination Starter and Machinery Disconnects, Safety and Security Systems

Standards

CE Certified | CSA C22.2 File No.53787/248.12 | UL 248-12 File No.E4273 Guide JDDZ

Features

Dual element feature provides the best time delay performance, allowing closer sizing and superior protection of motors and transformers
Closer sizing allows for smaller fuses and less costly switches
Class RK5 fuses with a 200 kA interrupt rating for use in a broad range of applications
Provides motor overload, ground fault and short circuit protection
Helps protect motors against burnout from overloads and 1 ph when sized properly
Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
Offers a 10 s time delay at 5 times the rated current
The time delay feature makes it possible to use fuse amp ratings which are much smaller than those of non-time delay fuses
Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
Provides current limitation to help protect downstream components from high fault currents
Gives motor running back-up protection to motors without extra costs

Specifications

Amperage Rating:	500 mA
Body Size:	0.81 in Dia x 5 in L
Body Type:	Cartridge
Class:	RK5
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Material:	Fiberglass
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	FRS-R
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
