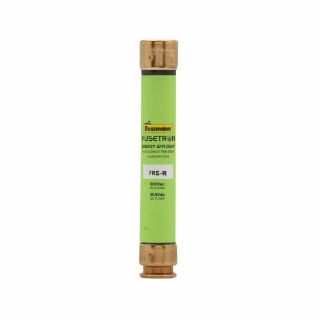

Actual Product May Vary From Image

FRS-R-17-1/2 BSF

Name: FRS-R-17-1/2 BSF
Brand: Bussmann
SKU: FRS-R-17-1/2 BSF
Price: 48.53 USD
Availability: InStock

Bussmann Fusetron™ FRS-R-17-1/2 Current Limiting Time Delay Fuse, 17.5 A, 600 VAC/300 VDC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: FRS-R-17-1/2

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	7
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$48.53

Qty:

Product Details

Brand Name

Bussmann

Type

Current Limiting

Alternate Supplier #

Grainger - 6F236

Description

Advanced protection, energy efficient Class RK5 dual element, current limiting, time delay fuses with optional open fuse indication on select ratings.

Bussmann Fusetron™ Time Delay Fuse, Current Limiting, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 17.5 A, 600 VAC/300 VDC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 0.81 in Dia x 5 in L Body Size

Application

Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems

Standards

Features

Dual element feature provides the best time delay performance, allowing closer sizing and superior protection of motors and transformers
Closer sizing allows for smaller fuses and less costly switches
Class RK5 fuses with a 200 kA interrupt rating for use in a broad range of applications
Provides motor overload, ground fault and short circuit protection
Helps protect motors against burnout from overloads and single phasing when sized properly
Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
The time-delay feature makes it possible to use fuse amp ratings that are much smaller than those of non-time delay fuses
Provides current limitation to help protect downstream components from high fault currents
Gives motor running back-up protection to motors without extra cost
Renewable

Specifications

Amperage Rating:	17.5 A
Body Size:	0.81 in Dia x 5 in L
Body Type:	Cartridge
Class:	RK5
Country of Origin:	MX
Element:	Dual
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	20/200 kA
Material:	Fiberglass
Mounting Type:	Holder
Rejection/Non-Rejection:	Rejection
Response Time:	10 s at 500%
Series:	FRS-R
Terminal Type:	Ferrule
Voltage Rating:	600 VAC/300 VDC
