FSAF520C.U FAG

Name: FSAF520C.U FAG
Brand: INA
SKU: FSAF520C.U FAG
Availability: OutOfStock

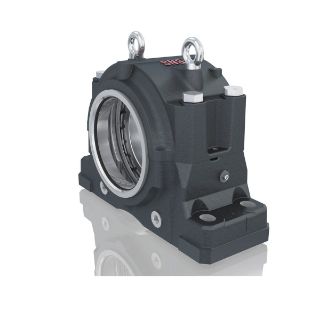

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

FSAF520C.U

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

FAG

Description

The new generation of SAF split pillow block housings has been completely redesigned to deliver maximum benefits to the user, while maintaining mounting dimensions that ensure interchangeability with previous versions, compatibility with other manufacturers products, and adherence to industry standards.

FAG Split Plummer Block Housing, Series: FSAF, 180 mm ID, Four-Bolt Base Mounting, 114.3 mm Base to Bore Centerline, 387 mm Overall Length, 148 mm Overall Width, 213 mm Overall Height, Compatible Bearing Type: Spherical Roller Bearing, 295 to 333 mm Bolt Center-to-Center Length, 111 mm Base Width, Cast Iron, Gray

Standards

ASTM A48

Features

The housing has higher strength due to the improved housing design, developed using modern calculation methods
The housing material can be selected in accordance with the requirements of the application, always giving the most economical solution
Due to the range of seal variants, the correct seal can be selected taking account of the environmental conditions
Marks indicating the center of the housing as well as machined locating faces allow rapid and precise alignment of the housing
Several predefined mounting points give easier mounting of sensors for condition monitoring and connection of the lubricant supply to the housing
Serial numbers marked on the housing cap and base ensure that the upper and lower housing sections are correctly matched during assembly
Housing is supplied in universal design

Includes

(2) Labyrinth Seals, (1) Triple Seal Ring, (1) End Cover and Grease Fitting

Specifications

Base to Bore Centerline:	114.3 mm
Base Width:	111 mm
Bolt Center-to-Center Length:	295 to 333 mm
Compatible Bearing Type:	Spherical Roller Bearing
Country of Origin:	DE
Finish:	Gray
Inside Diameter:	180 mm
Material:	Cast Iron
Mounting Type:	Four-Bolt Base
Overall Height:	213 mm
Overall Length:	387 mm
Overall Width:	148 mm
Series:	FSAF
