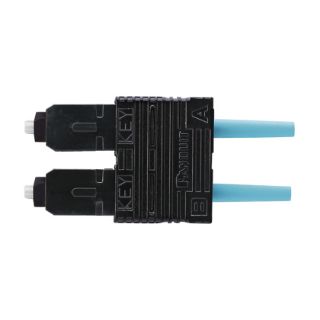

FSCDMCXAQ PAN

Name: FSCDMCXAQ PAN
Brand: Panduit
SKU: FSCDMCXAQ PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FSCDMCXAQ

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Laser Optimized Pre-Polished

Description

SC pre-polished fiber optic connectors shall be TIA/EIA-604 FOCIS-3 compliant and contain a factory terminated fiber, eliminating field polishing and adhesive. SC pre-polished connectors shall have an average insertion loss of 0.3 dB per mated pair for multimode and singlemode fiber. SC pre-polished connectors shall captivate fiber and buffer in one action allowing for up to two re-terminations with no degradation in performance.

Panduit®, FSCDMCXAQ, Fiber Optic Connector, Laser Optimized Pre-Polished, SC Duplex Connector, 50/125 um OM3/OM4 Multi-Mode Fiber, 900 um Tight Buffered Cable, Zirconia Ceramic Ferrule, Plastic, Aqua

Application

For equipment cross connects or interconnects in backbone, horizontal and work area applications and maintenance or emergency restoration of fiber networks and retrofit/initial install in both behind-the-wall (BTW) and in the permanent side of panelized interconnect and cross-connect

Standards

ARRA Compliant | Buy American Act Compliant

Features

Factory pre-polished fiber end face eliminates time consuming field polishing
Free floating housing ensures complete latching even when inserted by the boot, beneficial in high density spacing applications
Pre-assembled inner housing simplifies assembly
Each simplex connector includes inner housing assembly, outer housing, crimp sleeve, one boot for 900 um buffered fiber, one boot for 3 mm jacketed cable and one dust cap
Each duplex connector includes two inner housing assemblies, two outer housings, two crimp sleeves, two boots for 3 mm jacketed cable, two dust caps and one duplex clip
Accept 900 um buffered fiber, 3 mm jacketed cable or 1.6 to 2 mm jacketed cable (noted in part description) fiber cable size
2.5 mm zirconia ceramic ferrule (highest durability for repeated mattings)
OM3/OM4 10 Gig 50/125 um multimode fiber
Non-optical disconnect design maintains data transmission under tensile loads for jacketed cable
SC multimode duplex fiber optic connector for 900 m tight buffered cable installations

Specifications

Cable Construction:	900 um Tight Buffered
Color:	Aqua
Connector Type:	SC Duplex
Country of Origin:	CR
Ferrule Type:	Ceramic
Fiber Type:	50/125 um OM3/OM4 Multi-Mode
Material:	Plastic
