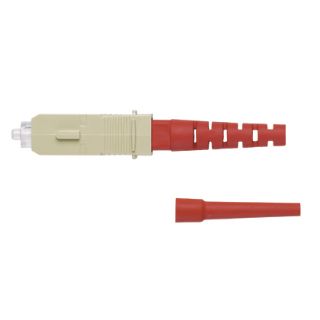

FSCMM502.0RD PAN

Name: FSCMM502.0RD PAN
Brand: Panduit
SKU: FSCMM502.0RD PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FSCMM502.0RD

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Pre-Polished

Description

Panduit® Opti-Crimp® Fiber Optic Connector, Pre-Polished, SC-Simplex Connector, 50/125 um OM2 Multi-Mode Fiber, 1.6 to 2 mm Jacketed, 900 um Buffered Cable, Zirconia Ceramic Ferrule, Polyetherimide, Red

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA-568-B.3 | TIA/EIA-604 FOCIS-3

Features

Pre-polished mechanical crimp termination eliminates polishing and adhesive, reducing installation time by 50% over field polish SC connectors
Non-optical disconnect design maintains data transmission under tensile loads (jacketed cable only), mechanical crimp cable retention consistently provides higher than industry standard cable retention
Factory pre-polished fiber endface eliminates time consuming field polishing to reduce installation costs, labor, scrap and the number of tools required

Includes

(1) Boot for 900 um Tight Buffered Fiber, (1) Boot for 3 mm Jacketed Cable, Crimp Sleeve, (1) Dust Cap, (1) Transparent Inner Housing Assembly with Pre-Polished Fiber Stub, Outer Housing

Specifications

Cable Construction:	1.6 to 2 mm Jacketed, 900 um Buffered
Color:	Red
Connector Type:	SC-Simplex
Country of Origin:	CR
Ferrule Type:	Zirconia Ceramic
Fiber Type:	50/125 um OM2 Multi-Mode
Material:	Polyetherimide
