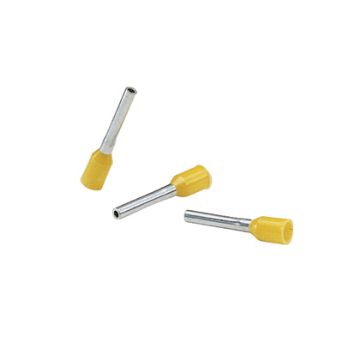

FSD75-8-D PAN

Panduit® Pan-Term® ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

Panduit®, FSD75-8-D, Ferrule, Type FSD DIN End Sleeve Single Insulated Single Wire, Stranded Copper Conductor, 0.5 sq-mm Conductor, 0.53 in Length, Seamless Barrel, 0.04 in ID x 0.06 in OD x 8 mm L Barrel, Specifications: 15/32 in L Wire Strip, 0.09 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, TiN Coated, White
