FSD76-8-D PAN

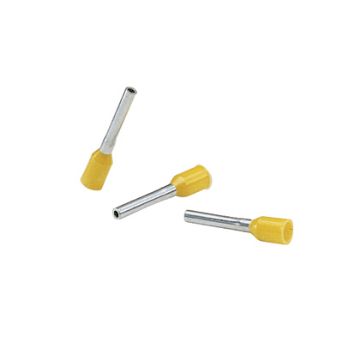

Picture of FSD76-8-D PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FSD76-8-D
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$0.27 / EA
This product has a minimum quantity of 500

Description

Brand Name

Panduit®

Type

Type FSD DIN End Sleeve Single Insulated Single Wire

Description

Panduit® Pan-Term® ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit®, FSD76-8-D, Ferrule, Type FSD DIN End Sleeve Single Insulated Single Wire, Stranded Copper Conductor, 0.75 sq-mm Conductor, 0.55 in Length, Seamless Barrel, 0.05 in ID x 0.06 in OD x 8 mm L Barrel, Specifications: 15/32 in L Wire Strip, 0.11 in Dia Maximum Wire Insulation, Polypropylene Insulation, 221 deg F, TiN Coated, Gray

Application

For limited space panel, control panel and terminal block applications

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 291-14 File No. LR31212 | cULus File No. E472545 | DIN 46228 Part 4 | RoHS Compliant | UL 508A | UL94 HB Flammability Rated

Features

  • Designed with a seamless barrel to contain loose wire strands for superior terminations
  • Eases insertion of wire into terminal block
  • Meets DIN, UL and CSA standards for wire containment

Specifications

Barrel Size:0.05 in ID x 0.06 in OD x 8 mm L
Barrel Type:Seamless
Color:Gray
Conductor Size:0.75 sq-mm
Conductor Type:Stranded
Country of Origin:DE
Finish:TiN Coated
Length:0.55 in
Material:Copper
Specifications:0.11 in Dia Maximum Wire Insulation, 15/32 in Mounting Hole, 15/32 in L Wire Strip, Polypropylene Insulation
Temperature Rating:221 deg F

Resources

Video
