FSD77-8-DSL2 PAN

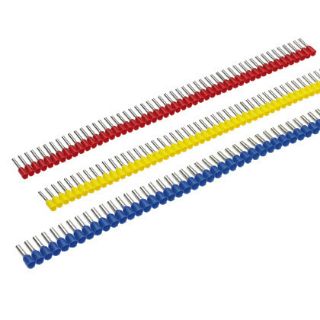

Panduit® Pan-Term® ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.

Panduit®, FSD77-8-DSL2, Wire Ferrule, Type FSD DIN End Sleeve On-Strip Single Insulated, Stranded Copper Conductor, 1 sq-mm Conductor, 0.6 in Length, Seamless Barrel, 0.06 in ID x 0.07 in OD x 8 mm L Barrel, Specifications: 13/32 in L Wire Strip, 0.12 in Dia Maximum Wire Insulation, Polypropylene Insulation, 10 mm Mounting Hole, 221 deg F, Tin Plated, Red
