FU347 LBB

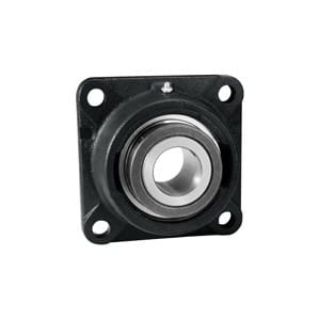

Picture of FU347 LBB
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
FU347
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,746.51 / EA

Description

Brand Name

Link-Belt®

Type

Fixed Heavy Duty

Description

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Flange Block Ball Bearing, Fixed Heavy Duty, Series: 300, 2-15/16 in Bore, 7-1/4 in Bolt Center-to-Center Length, 4-Bolt Square Flange Mounting, 9-1/16 in Overall Length/Diameter, 4-5/16 in Overall Depth, 9-1/16 in Overall Height, Set Screw Locking Device, 26140 lb Dynamic/17300 lb Static Load, 3700 rpm Maximum, 225 deg F, Powder Coated

Application

Aggregates, Air Handling, Forestry, Mining, Steel and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

  • Steel clad clearance seal
  • Alignable and relubricatable
  • Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity

Specifications

Bolt Center-to-Center Length:7-1/4 in
Bore Diameter:2-15/16 in
Finish:Powder Coated
Flange Mounting Type:4-Bolt Square
Load Capacity:26140 lb Dynamic/17300 lb Static
Locking Device:Set Screw
Maximum Speed:3700 rpm
Overall Depth:4-5/16 in
Overall Height:9-1/16 in
Overall Length/Diameter:9-1/16 in
Series:300
Temperature Rating:225 deg F
