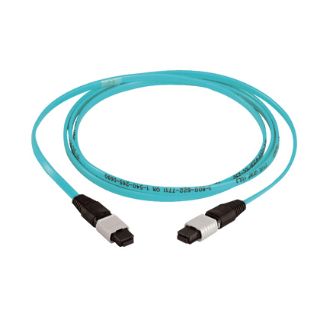

FX12D5-5M4Y PAN

MTP™ interconnect cable assemblies shall include one factory terminated female MTP™ 12-fiber connector on each end of laser optimized OM3 fiber and OM4 fiber or OM1, OM2 or OS1 fiber. Jacketed cable is compliant with NFPA 262 (OFNP) flame rating. MTP™ interconnect cable assemblies shall meet or exceed the requirements of TIA/EIA-568-B.3. The MTP™ 12-fiber connector shall exceed the requirements of TIA/EIA-455-21A for 500 mating cycles. The MTP™ connector finishing process shall deliver uniform fiber height, low insertion loss and excellent return loss performance across the 12-fiber interface.

Panduit®, FX12D5-5M4Y, Interconnect Cable Assembly, 10Gig™ OFNP OM3 Multi-Mode, 12 Fibers, 4 m Length, Female MTP Connector, 50 um Core, 125 um Clad, 3/1 dB/km at 850/1300 nm Attenuation, Aqua Jacket
