FX3U212NC LBB

Name: FX3U212NC LBB
Brand: Rexnord
SKU: FX3U212NC LBB
Availability: OutOfStock

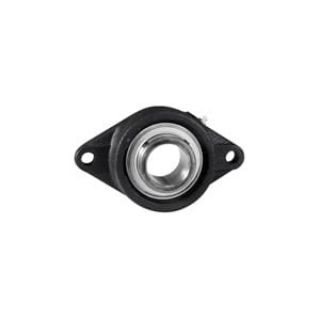

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

FX3U212NC

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Link-Belt®

Type

Standard-Duty

Description

200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.

Link-Belt® Flange Block Ball Bearing, Standard-Duty, Series: 200, 3/4 in Bore, 3-17/32 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-7/16 in Overall Length/Diameter, 1-31/64 in Overall Depth, 4-13/32 in Overall Height, Set Screw Locking Device, Alloy Steel Bearing, 2870 lb Dynamic/1480 lb Static Load, 10000 rpm Maximum, 225 deg F, Powder Coated

Application

Aggregates, Agriculture, Air Handling, Package Handling, Construction and Shipping Industries

Standards

ANSI/ABMA STD 9

Features

Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
Compact, 1-piece housing provides excellent mounting support
Non-relubricatable bearing
Integral bearing seals
Wide inner ring for increased shaft stability
Cast iron housing
Single lip contact seal
Closed end cap

Specifications

Bearing Material:	Alloy Steel
Bolt Center-to-Center Length:	3-17/32 in
Bore Diameter:	3/4 in
Country of Origin:	MX
Finish:	Powder Coated
Flange Mounting Type:	2-Bolt
Load Capacity:	2870 lb Dynamic/1480 lb Static
Locking Device:	Set Screw
Maximum Speed:	10000 rpm
Overall Depth:	1-31/64 in
Overall Height:	4-13/32 in
Overall Length/Diameter:	2-7/16 in
Series:	200
Temperature Rating:	225 deg F
