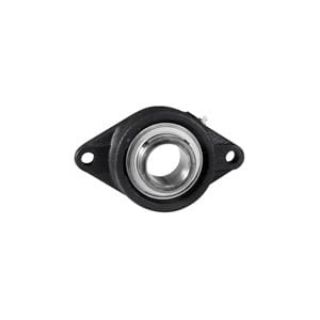

Actual Product May Vary From Image

FX3U216NC LBB

Name: FX3U216NC LBB
Brand: Rexnord
SKU: FX3U216NC LBB
Availability: OutOfStock

Link-Belt® FX3U216NC 200 Standard-Duty Flange Block Ball Bearing, 1 in Dia Bore, 3-57/64 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 2-11/16 in OAL/Dia

Manufacturer: Rexnord

Manufacturer part number: FX3U216NC

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Standard-Duty

Description

200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain, belt drives, fans, blowers, power transmission and many other applications.

Link-Belt® Flange Block Ball Bearing, Standard-Duty, Series: 200, 1 in Bore, 3-57/64 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-11/16 in Overall Length/Diameter, 1-35/64 in Overall Depth, 4-29/32 in Overall Height, Set Screw Locking Device, Alloy Steel Bearing, 3150 lb Dynamic/1760 lb Static Load, 9600 rpm Maximum, 225 deg F, Powder Coated

Application

Aggregates, Agriculture, Air Handling, Package Handling, Construction and Shipping Industries

Standards

ANSI/ABMA STD 9

Features

Precision alignable ball bearings of deep groove construction for high capacity and high precision applications
Compact, 1-piece housing provides excellent mounting support
Non-relubricatable bearing
Integral bearing seals
Wide inner ring for increased shaft stability
Cast iron housing
Single lip contact seal
Closed end cap

Specifications

Bearing Material:	Alloy Steel
Bolt Center-to-Center Length:	3-57/64 in
Bore Diameter:	1 in
Finish:	Powder Coated
Flange Mounting Type:	2-Bolt
Load Capacity:	3150 lb Dynamic/1760 lb Static
Locking Device:	Set Screw
Maximum Speed:	9600 rpm
Overall Depth:	1-35/64 in
Overall Height:	4-29/32 in
Overall Length/Diameter:	2-11/16 in
Series:	200
Temperature Rating:	225 deg F
