FXE10F-10FM4 PAN

Name: FXE10F-10FM4 PAN
Brand: Panduit
SKU: FXE10F-10FM4 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FXE10F-10FM4

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

OM3 Riser

Description

Keyed LC fiber optic patch cords shall include simplex or duplex keyed LC connectors on both ends or on one end with non-keyed LC or SC connectors on the other end. Keyed LC fiber optic pigtails shall include simplex or duplex keyed LC connectors on one end and open (un-terminated) on the other end. Keyed LC connectors shall be mechanically keyed with color specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. Patch cords and pigtails shall include laser optimized OM3 fiber, OM2, OM1 and OS1/OS2 fiber inside 900 um tight-buffered fiber or 1.6mm simplex or duplex zip-cord jacketed cable. Jacketed cable shall be compliant with UL1666 (OFNR) or NFPA 262 (OFNP) flame ratings. Patch cords and pigtails shall be RoHS compliant and shall meet or exceed requirements of TIA/EIA-568-B.3. The fiber connectors shall exceed the requirements of TIA/EIA-455-21A for 500 mating cycles.

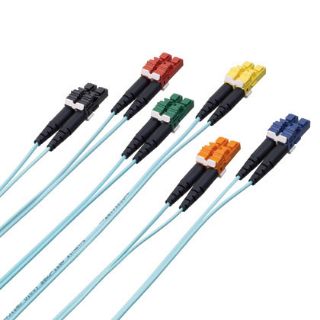

Panduit® Opti-Core® Fiber Optic Patch Cord, OM3 Riser, 2 Fibers, 13.12 ft Length, Keyed LC Duplex to Keyed LC Connector, 50 um Core, 125 um Clad, Aqua

Application

For interconnect and cross connect of applications for the specialized infrastructure design that is required for secure network and keyed LC Opti-Core® fiber optic patch cords and pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide

Standards

Features

Riser rated patch cords support installations that require this flame rating in specific environments
100% performance tested assures that patch cords and pigtails are standard compliant
QC identification label quality control reference provides lifetime traceability of test data

Specifications

Clad Dimension:	125 um
Color:	Aqua
Connector Type:	Keyed LC Duplex to Keyed LC
Core Dimension:	50 um
Country of Origin:	CR
Fiber Count:	2
Length:	13.12 ft
