FXE10G-10GM2 PAN

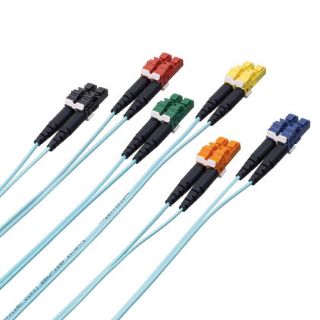

Picture of FXE10G-10GM2 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FXE10G-10GM2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 6 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Duplex Keyed Singlemode

Description

Fiber optic pigtails shall include simplex or duplex LC, SC, ST, MT-RJ connectors or FJ or keyed FJ plugs or jacks on one end and open (unterminated) on the other end. Patch cords and pigtails shall include laser optimized OM4, OM3 fiber or OM2, OM1 or OS1/OS2 fiber in 900 um tight buffered fiber, 1.6 mm or 3 mm simplex or duplex zipcord jacketed cable, 1.8 mm duplex zipcord jacketed cable. Jacketed cable shall be compliant with UL 1666 (OFNR) or NFPA 262 (OFNP) flame ratings. Patch cords and pigtails shall meet or exceed requirements of TIA/EIA-568-C.3.
Panduit® Opti-Core® Fiber Optic Patch Cord, Duplex Keyed Singlemode, 2 m Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket, Violet

Application

For entrance facilities, telecommunications rooms and data centers applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ISO/IEC 11801 | IEC-61754-7 | TIA/EIA-568-C.3 | TIA-604-5 (FOCIS-5) | UL 1666

Features

  • Patch cords are tested to support network transmission speeds up to 10 Gb/s for link lengths up to 300 m with an 850 nm source per IEEE 802.3ae 10 GbE standard
  • Color specific keys with positive and negative keying features to visually and mechanically distinguish connections to prevent unauthorized mating with unlike keyed or non-keyed adapters
  • Part of a complete keyed LC system that includes Opti-Core® patch cords and pigtails, OptiCam™ pre-polished cam connectors, Opticom® fiber adapter panels (FAPs) and Mini-Com® adapter modules
  • Backward compatible for use with all 50/125 micron system requirements
  • Factory terminated and 100% tested for insertion loss, insertion loss data recorded for every multi-mode patch cord
  • Lifetime traceability of test data to a quality control number on each patch cord
  • Highest quality flame retardant fiber optic cable with tight buffered coating on each optical fiber

Includes

Color Specific Keys with Positive and Negative Keying

Specifications

Clad Dimension:125 um
Color:Violet
Connector Type:LC to LC
Core Dimension:50 um
Country of Origin:CR
Jacket Color:Aqua
Length:2 m
