FXLE10-10M10 PAN

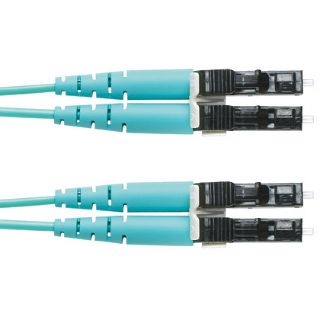

Picture of FXLE10-10M10 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FXLE10-10M10
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

Duplex OM3 Multi-Mode LSZH

Description

RoHS compliant fiber optic patch cords shall include simplex or duplex LC, SC, ST or MT-RJ connectors, or FJ or keyed FJ plugs or jacks on both ends. RoHS compliant fiber optic pigtails shall include simplex or duplex LC, SC, ST, or MT-RJ connectors, or FJ or keyed FJ plugs or jacks on one end and open (unterminated) on the other end. Patch cords and pigtails shall include laser optimized OM4, OM3 fiber or OM2, OM1 or OS1/OS2 fiber in 900 um tight-buffered fiber, 1.6mm or 3.0mm simplex or duplex zipcord jacketed cable, or 1.8mm duplex zipcord jacketed cable. Jacketed cable shall be compliant with IEC-60332-3 (LSZH) flame ratings. Patch cords and pigtails shall meet or exceed requirements of TIA/EIA-568-C.3. The fiber connectors shall be FOCIS compliant or compatible, and exceed the requirements of TIA/EIA-455-21A for 500 mating cycles.
Panduit® Opti-Core® Fiber Optic Patch Cord, Duplex OM3 Multi-Mode LSZH, 2 Fibers, 10 m Length, LC to LC Connector, 50 um Core, 125 um Clad, Aqua Jacket, Aqua Boot

Application

Interconnect Pre-terminated Cassettes in Main Distribution, Horizontal Distribution, Equipment Distribution Areas, Entrance Facility, Telecommunication Room, Data Center, Ethernet, Fast Ethernet, FDDI and ATM Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA-455-21A, 568-C.3, 568-B.3 | ISO/IEC 11801 | IEC-61754-7, 60332-3 | TIA-604-5 (FOCIS-5)

Features

  • Factory terminated and 100% tested for insertion loss (all) and return loss (10Gig™ and SM)
  • Certified 10 GbE performance
  • Test data supplied with each patch cord and pigtail
  • Q.C. identification label
  • Insertion loss data recorded for every multi-mode patch cord
  • Highest quality flame retardant fiber optic cable

Specifications

Clad Dimension:125 um
Color:Aqua Boot
Connector Type:LC to LC
Core Dimension:50 um
Fiber Count:2
Jacket Color:Aqua
Length:10 m
