FXLE3-10GM20 PAN

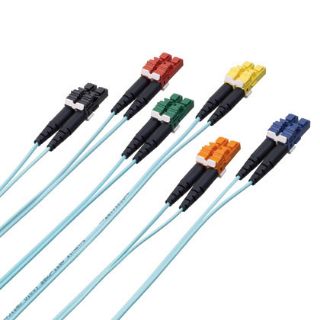

Picture of FXLE3-10GM20 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FXLE3-10GM20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 6 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

OM3 Duplex Keyed Multimode

Description

Keyed LC fiber optic patch cords include simplex or duplex keyed LC connectors on both ends or on one end with non-keyed LC or SC connectors on the other end. Keyed LC fiber optic pigtails shall include simplex or duplex keyed LC connectors on one end and open (un-terminated) on the other end. Keyed LC connectors are mechanically keyed with color-specific positive and negative keying features to prevent unintentional mating with unlike keyed or non-keyed adapters. Patch cords and pigtails include laser optimized OM3 fiber, OM2, OM1 and OS1/OS2 fiber inside 900 um tight buffered fiber or 1.6 mm simplex or duplex zipcord jacketed cable. Jacketed cable is compliant with IEC-60332 (LSZH) flame ratings. Patch cords and pigtails are RoHS compliant and meet or exceed requirements of ISO/IEC 11801 and TIA/EIA - 568-B.3. The fiber connectors exceed the requirements of TIA/EIA-455-21A or 500 mating cycles.
Panduit® Opti-Core® Fiber Optic Patch Cord, OM3 Duplex Keyed Multimode, 2 Fibers, 65.62 ft Length, SC Duplex to Keyed LC Connector, 50 um Core, 125 um Clad, LSZH Jacket, Aqua

Application

For use to enable fiber to the desk (FTTD), interconnect and cross connect of applications for the specialized infrastructure design that is required for secure networks and keyed LC Opti-Core® fiber optic patch cords and pigtails is FTTD deployments that require a level of visual and mechanical differentiation, and physical layer security that conventional connector solutions cannot provide

Standards

ARRA Compliant | Buy American Act Compliant | IEC 11801 | IEC 61754-7 | RoHS Compliant | TIA/EIA 568-B.3

Features

  • Color specific keys with positive and negative keying features
  • Factory terminated and 100% tested for insertion loss and return loss
  • Certified 10 GbE performance
  • Test data supplied with each patch cord and pigtail

Specifications

Clad Dimension:125 um
Color:Aqua
Connector Type:SC Duplex to Keyed LC
Core Dimension:50 um
Country of Origin:CR
Fiber Count:2
Jacket Material:LSZH
Length:65.62 ft
