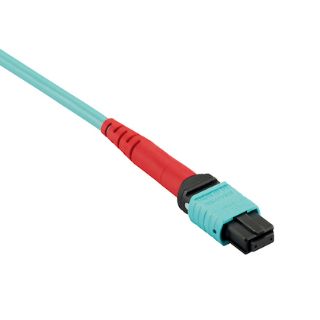

FXUYLEEEEAAM015 PAN

QuickNet™ 24-fiber MPO pre-terminated trunk cable assemblies allow for rapid deployment of high-density permanent links for aggregation of 10G Ethernet and higher speed Fiber channel cabling. These cables and adapter panels facilitate direct attach or structured cabling capability for 100GBASE-SR10 applications and CXP or MXP optics requiring 24 fiber MPO interconnection at the transceiver media device interface. QuickNet™ pre-terminated trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost. QuickNet™ pre-terminated trunk cable assemblies are built with modular 24 fiber MTP* connectivity and provide compatibility, flexibility and system performance in cabling applications requiring a TIA-FOCIS 5 compliant 24 fiber MPO interface at a cabling bulkhead adapter or transceiver receptacle interface. All Panduit ® QuickNet™ trunk cable assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity. These trunk assemblies, when deployed in a channel, provide 40 Gb/s and 100 Gb/s network performance up to 100meters for OM3 and up to 125 meters for OM4 (per the IEEE 802.3ba 40/100 GbE Ethernet standard) while maintaining compatibility with legacy Ethernet and all ANSI Fiber Channel applications.

Panduit®, FXUYLEEEEAAM015, Trunk Cable Assembly and Adapter Panel, LSZH 24-OM3 Multimode Standard IL, Female MPO End A, 15 m Length, 50/125 um Conductor, Aqua
