FZ8RPJNJNXNF092 PAN

Name: FZ8RPJNJNXNF092 PAN
Brand: Panduit
SKU: FZ8RPJNJNXNF092 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FZ8RPJNJNXNF092

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Indoor OM4 Multi-Mode OFNP Method A Optimized IL Round

Description

8-fiber interconnect assemblies are used in high density, high speed network and storage applications. The 8-fiber MPO female connectors are compatible with QSFP fiber modules that employ parallel optics technologies such at 40GBASE-SR4 and 100GBASE-SR4. 8-fiber interconnects can connect (2) QSFP modules directly or can be used to connect a QSFP port to an MPO-to-LC cassette.

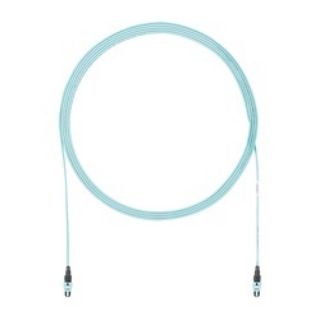

Panduit®, FZ8RPJNJNXNF092, Fiber Interconnect Cable Assembly, 8 Fibers, 92 ft Length, PanMPO™ Female Connector, 50 um Core, 125 um Clad, 3/1.5 dB at 850/1300 nm Attenuation, Aqua Jacket, 0 to 70 deg C

Application

For use to connect to QSFP modules that employ parallel optics technologies such as 40GBASE-SR4, 100GBASE-SR4 and indoor applications

Standards

Features

Without connector variant
Without pulling eye

Specifications

Attenuation Rating:	3/1.5 dB at 850/1300 nm
Clad Dimension:	125 um
Connector Type:	PanMPO™ Female
Core Dimension:	50 um
Country of Origin:	CR
Fiber Count:	8
Jacket Color:	Aqua
Length:	92 ft
Temperature Rating:	0 to 70 deg C
