FZL12D5-5M90 PAN

MTP™ interconnect cable assemblies include one factory terminated female MTP™ 12-fiber connector on each end of laser optimised OM3/OM4 fiber or OM1, OM2 or OS1 fiber. Jacketed cable is compliant with IEC-60332 (LSZH) flame rating. MTP™ interconnect cable assemblies meet or exceed the requirements of ISO/IEC 11801. The MTP™ 12-fiber connector exceeds the requirements of TIA/EIA-455-21A for 500 mating cycles. The MTP™ connector finishing process delivers uniform fiber height, low insertion loss and excellent return loss performance across the 12-fiber interface.

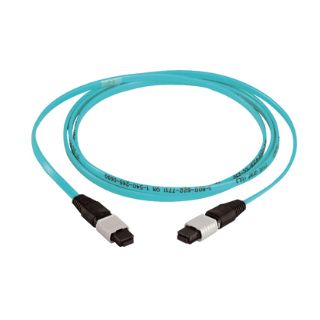

Panduit®, FZL12D5-5M90, Interconnect Cable Assembly, 12 Fibers, 90 m Length, Female MTP Connector, 50 um Core, 125 um Clad, Aqua Jacket
