FZN0505RTPF046 PAN

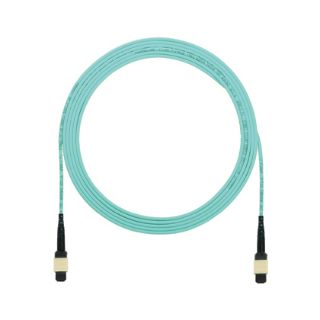

Picture of FZN0505RTPF046 PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
FZN0505RTPF046
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Panduit®

Type

OM4 Multi-Mode Plenum Round

Description

RoHS compliant MTP/MPO interconnect round cable assemblies shall include one factory terminated female MTP/MPO 12-fiber connector on each end of laser optimized OM3 and OM4 fiber or OM1, OM2 or OS1/OS2 fiber. Jacketed cable is compliant with NFPA 262 (OFNP) flame rating. MTP/MPO interconnect round cable assemblies shall meet or exceed the requirements of TIA/EIA-568-C.3. The MTP/MPO 12-fiber connector shall exceed the requirements of TIA/EIA-455-21A for 500 mating cycles. The MTP/ MPO connector finishing process shall deliver uniform fiber height, low insertion loss and excellent return loss performance across the 12-fiber interface.
Panduit® QuickNet™ MTP® Interconnect Cable Assembly, OM4 Multi-Mode Plenum Round, 12 Fibers, 46 ft Length, Female MTP/MPO Connector, 50 um Core, 125 um Clad, Aqua Jacket

Application

High Density Network Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | TIA/EIA-568-C.3 | ISO/IEC 11801 | ISO/IEC 61754-7 | TIA-604-5 (FOCIS-5) | NFPA 262

Features

  • High density 12-fiber round cable enables an easy and well organized high density installation with design flexibility and lower installation costs
  • Plenum rated jacket meets NFPA 262 (OFNP) flame rating for standard compliant safety
  • MTP/MPO 12-fiber connector easily connects network segments to reduce deployment time, improve reliability and make maintenance easier
  • FOCIS-5 compliant and backward compatible assures performance with existing compliant MPO devices for cost effective integration
  • Precision plug yields lower average insertion loss for improved optical performance
  • Interface design improvements assure durability and reliability
  • Unique MTP/MPO connector termination enhancements deliver uniform fiber height across the 12-fiber interface
  • Helps optimize connector to connector mating resulting in low insertion loss and excellent return loss performance
  • Supports 10 GbE, multi-mode and singlemode applications for design flexibility
  • 10Gig™ MTP/MPO interconnect round cable assemblies are tested per IEEE 802.3ae 10 GbE to support network transmission speeds up to 10 Gb/s for link lengths up to 300 m at 850 nm to assure high performance and reliability
  • Establishes a performance reference to streamline maintenance and troubleshooting

Specifications

Clad Dimension:125 um
Connector Type:Female MTP/MPO
Core Dimension:50 um
Country of Origin:CR
Fiber Count:12
Jacket Color:Aqua
Length:46 ft
