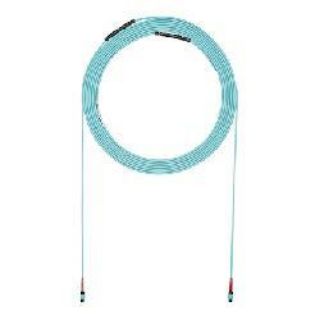

FZUYLE5E5XNM016 PAN

Name: FZUYLE5E5XNM016 PAN
Brand: Panduit
SKU: FZUYLE5E5XNM016 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

FZUYLE5E5XNM016

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

Multi-Mode Small Diameter

Description

QuickNet™ 24-fiber MPO pre-terminated trunk cable assemblies allow for rapid deployment of high density permanent links for aggregation of Ethernet and higher speed fiber channel cabling. These cables facilitate direct attach or structured cabling capability for 100GBASE-SR10 applications and CXP or MXP optics requiring 24-fiber MPO interconnection at the transceiver media device interface.

Panduit® HD Flex™ Fiber Trunk Cable Assembly, Multi-Mode Small Diameter, 24 Fibers, 52.48 ft Length, Female MPO Connector, 50 um Core, 125 um Clad, 3/1.5 dB at 850/1300 nm Attenuation, LSZH Jacket, OM4 Jacket, Aqua, 32 to 158 deg F

Application

For use to support direct connection and structured cabling of 100GBASE-SR10 links and aggregation of multiple lower count fiber cables onto a single 24F MPO cable and indoor applications

Standards

Features

Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost

Specifications

Attenuation Rating:	3/1.5 dB at 850/1300 nm
Clad Dimension:	125 um
Color:	Aqua
Connector Type:	Female MPO
Core Dimension:	50 um
Country of Origin:	CR
Fiber Count:	24
Jacket Color:	OM4
Jacket Material:	LSZH
Length:	52.48 ft
Temperature Rating:	32 to 158 deg F
