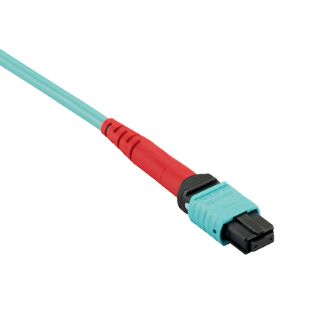

FZUYPEEEEAAF250 PAN

QuickNet™ 24-fiber MPO pre-terminated trunk cable assemblies allow for rapid deployment of high density permanent links for aggregation of 10G Ethernet and higher speed fiber channel cabling. These cables and adapter panels facilitate direct attach or structured cabling capability for 100GBASE-SR10 applications and CXP or MXP optics requiring 24-fiber MPO interconnection at the transceiver media device interface. QuickNet™ pre-terminated trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost. QuickNet™ pre-terminated trunk cable assemblies are built with modular 24-fiber MTP connectivity and provide compatibility, flexibility and system performance in cabling applications requiring a TIA-FOCIS 5 compliant 24-fiber MPO interface at a cabling bulkhead adapter or transceiver receptacle interface. All Panduit® QuickNet™ trunk cable assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity. These trunk assemblies, when deployed in a channel, provide 40 Gbps and 100 Gbps network performance up to 100 m for OM3 and up to 125 m for OM4 (per the IEEE 802.3ba 40/100 GbE Ethernet standard) while maintaining compatibility with legacy Ethernet and all ANSI fiber channel applications.

Panduit® QuickNet™ Fiber Trunk Cable Assembly, OM4 Multi-Mode Small Diameter Plenum, Series: FZUYP, 24 Fibers, 250 ft Length, Ferrule Female Connector, 50 um Core Dimension, 125 um Clad Dimension, 3.5/1.5 dB at 850/1300 nm Attenuation, Aqua, Black, 158 deg F
