G046A MAR

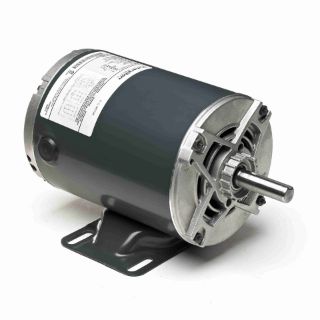

Picture of G046A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
G046A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056T17D11051

Features

Motor will not accept a C-face kit See XRI® Dripproof in Premium Efficiency section for NEMA Premium efficiencies F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):11.22
CE:Y
Connection Drawing Number:A-EE7300-REGAL
Country of Origin:Mexico
CSA:Y
Current:1.4
DE Bearing Size:6203
DE Bearing Type:Ball
Duty:Continous
Efficiency:73.4
Electrical Type:Squirrel Cage Inverter Rated
Enclosure Type:Drip Proof
Frame Length (IN):7.25
Frame Material:Rolled Steel
Frame Size:56
Frame Type:56
Frequency:60
Harmonized Tariff Code:8501.51.4040
HP:0.33
Insulation Class:B
IP Code:22
KVA Code:M
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-SS404127-725
Phases:3
Power Factor:70.6
Power Rating (HP):0.33
Power Rating (kW):0.25
Resistance Main:20.8
Rotation:Reversible
Service Factor:1.35
Shaft Diameter (IN):0.625
Shaft Extension:1.97
Shaft Type:NEMA 56
Speed:1725
Speed Max:1725
Starting Type:Line Or Inverter
Type of Overload Protector:No
UL:Recognized
Voltage:208

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
1/3 HP
Speed Rating
1725
Type
Squirrel Cage Inverter Rated
Voltage Rating
208 V
