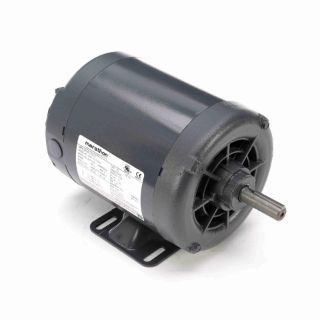

Picture of G062A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
G062A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056T17D11044

Features

Will accept C-Face Kits except where noted, see Accessories Section See XRI® Dripproof in Premium Efficiency section for NEMA Premium efficiencies

Specifications

Assembly/Box Mounting:F1 Out ODE Brkt Radial
C Dim (IN):11.31
CE:Y
Connection Drawing Number:D0000569-001
Country of Origin:Mexico
CSA:Y
Current:1.9
DE Bearing Size:6203
DE Bearing Type:Ball
Duty:Continous
Efficiency:78.2
Electrical Type:Squirrel Cage Induction Run
Enclosure Type:Drip Proof
Frame Material:Rolled Steel
Frame Size:56
Frame Type:56
Frequency:60
Harmonized Tariff Code:8501.51.4040
HP:0.50
Insulation Class:B
IP Code:22
KVA Code:K
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid base
NEMA Design:B
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:056T17D11044
Phases:3
Power Rating (HP):0.50
Power Rating (kW):0.37
Rotation:Reversible
Service Factor:1.25
Shaft Diameter (IN):0.625
Shaft Extension:1.88
Shaft Type:T
Speed:1725
Speed Max:1725
Starting Type:Across The Line
Type of Overload Protector:No
UL:Recognized
Voltage:208

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
1/2 HP
Speed Rating
1725
Type
Squirrel Cage Induction Run
Voltage Rating
208 V
