G063 MAR

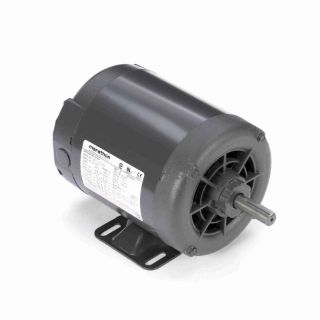

Picture of G063 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
G063
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056T17D2094

Specifications

Assembly/Box Mounting:F1 Only
C Dim (IN):10.32
CE:N
Connection Drawing Number:113A930FIG2
Country of Origin:Mexico
CSA:Y
Current:2.1-2.2/1.1
DE Bearing Type:BALL
Duty:CONTINUOUS
Efficiency:72
Electrical Type:SQ CAGE IND RUN
Enclosure Type:DP
Frame Material:ROLLED STEEL
Frame Size:56
Frame Type:56
Frequency:60
Harmonized Tariff Code:8501.51.4040
HP:.5
Insulation Class:B
IP Code:22
KVA Code:K
Max Ambient:40°C
Motor Orientation:HORIZONTAL
Mounting Type:RIGID
NEMA Design:B
Number of Poles:4
ODE Bearing Type:BALL
Outline Drawing Number:52A111265P1
Phases:3
Power Factor:59
Power Rating (HP):.5
Power Rating (kW):0.37
Resistance Main:41
Rotation:REV
Service Factor:1.25
Shaft Diameter (IN):.63
Shaft Extension:1.88
Shaft Type:T
Speed:1725
Speed Max:1725
Starting Type:ACROSS THE LINE
Type of Overload Protector:NONE
UL:Recognized
Voltage:208-230/460

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
1/2 HP
Speed Rating
1725
Type
Squirrel Cage Induction Run
Voltage Rating
208-230/460 V
