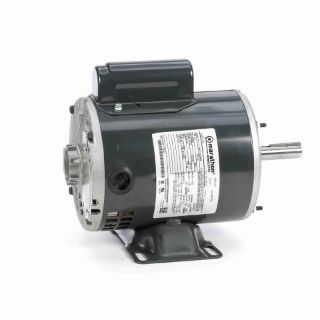

G078 MAR

Name: G078 MAR
Brand: Marathon Electric Motors
SKU: G078 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

G078

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048C17D2034

Features

Heavy gauge steel frame and base Ball bearings (except as noted) Economical split phase or capacitor start designs, as noted Service Factor, as noted UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	9.84
CE:	N
Connection Drawing Number:	A-EE9002M
Country of Origin:	Mexico
CSA:	Y
Current:	5/2.3-2.5
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	CONTINUOUS
Efficiency:	59.5
Electrical Type:	CAP START IND RUN
Enclosure Type:	DP
Frame Length (IN):	6.25
Frame Material:	ROLLED STEEL
Frame Size:	48
Frame Type:	48
Frequency:	60
HP:	.25
Insulation Class:	B
IP Code:	22
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	RIGID
NEMA Design:	No Design Code
Number of Poles:	4
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-SS78783-625
Phases:	1
Power Factor:	57
Power Rating (HP):	.25
Power Rating (kW):	0.19
Resistance Main:	0
Rotation:	SELECTIVE CCW
Service Factor:	1.35
Shaft Diameter (IN):	.5
Shaft Extension:	1.59
Shaft Type:	STANDARD 48
Speed:	1725
Speed Max:	1725
Starting Type:	ACROSS THE LINE
Type of Overload Protector:	MANUAL
UL:	Recognized
Voltage:	115/208-230
