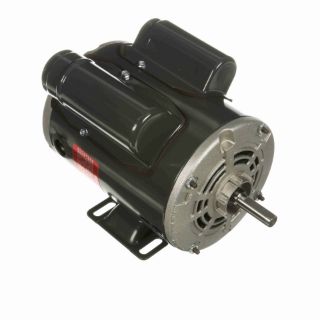

G091A MAR

Name: G091A MAR
Brand: Marathon Electric Motors
SKU: G091A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

G091A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

048B34D11002

Heavy gauge steel frame and base Ball bearings Capacitor start/capacitor run design for reduced amperage

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	10.09
CE:	Y
Connection Drawing Number:	A-EE9002J-REGAL
Country of Origin:	Mexico
CSA:	Y
Current:	3.0/1.5
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	70.5
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	6.63
Frame Material:	Rolled Steel
Frame Size:	48
Frame Type:	48
Frequency:	60
HP:	0.33
Insulation Class:	B
IP Code:	22
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	Rigid base
NEMA Design:	N
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	A-SS404113-650
Phases:	1
Power Factor:	98.4
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.35
Shaft Diameter (IN):	0.500
Shaft Extension:	1.59
Shaft Type:	NEMA 48
Speed:	3450
Speed Max:	3450
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/230
