G095A MAR

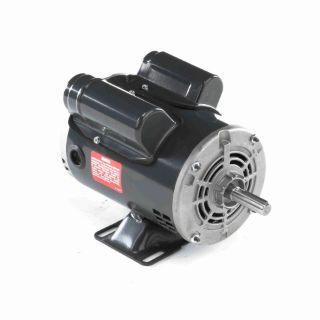

Picture of G095A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
G095A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

056B17D11034

Features

Heavy gauge steel frame and base Capacitor start/capacitor run design for reduced amperage

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):10.97
CE:Y
Connection Drawing Number:EE9002F
Country of Origin:Mexico
CSA:Y
Current:3.8/1.9
DE Bearing Size:6203
DE Bearing Type:Ball
Duty:Continuous
Efficiency:72.4
Electrical Type:Capacitor Start Capacitor Run
Enclosure Type:Drip Proof
Frame Length (IN):7.
Frame Material:Rolled Steel
Frame Size:56
Frame Type:56
Frequency:60
Harmonized Tariff Code:8501.40.4040
HP:0.33
Insulation Class:B
IP Code:22
KVA Code:L
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Rigid Base
NEMA Design:NO DESIGN CODE
Number of Poles:4
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-SS404114-700
Phases:1
Power Factor:79
Power Rating (HP):0.33
Power Rating (kW):0.25
Resistance Main:0
Rotation:Selective Counterclockwise
Service Factor:1.35
Shaft Diameter (IN):0.625
Shaft Extension:1.97
Shaft Type:T
Speed:1725
Speed Max:1725
Starting Type:Across The Line
Type of Overload Protector:Manual
UL:Recognized
Voltage:115/230

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1/3 HP
Speed Rating
1725
Type
Capacitor Start Capacitor Run
Voltage Rating
230
