G1098 MAR

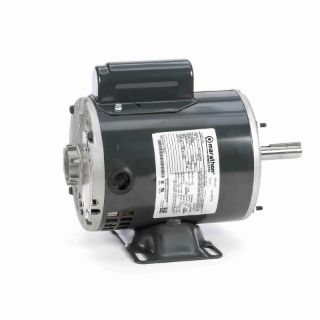

Picture of G1098 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
G1098
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

5KC36JN266

Features

Sleeve bearing Rolled steel frame

Specifications

C Dim (IN):9.66
CE:N
Connection Drawing Number:52A105381AA
Country of Origin:Mexico
CSA:Y
Current:7.6
DE Bearing Size:6203
DE Bearing Type:BALL
Duty:Continuous
Efficiency:0
Electrical Type:Capacitor Start Induction Run
Enclosure Type:Drip Proof
Frame Length (IN):6.22
Frame Material:Rolled Steel
Frame Size:48
Frame Type:48
Frequency:60
Harmonized Tariff Code:8501.40.4040
HP:1/2
Insulation Class:B
KVA Code:L
Max Ambient:40°C
Motor Orientation:ANY
Mounting Type:Rigid Base
Number of Poles:2
Number of Speeds:1
ODE Bearing Size:6203
ODE Bearing Type:BALL
Outline Drawing Number:52A109399P1
Phases:1
Power Factor:0
Power Rating (HP):0.5
Power Rating (kW):0.37
Rotation:Counterclockwise/Clockwise
Service Factor:1.25
Shaft Extension:.500 X 1.50 FLAT
Speed:3450
Speed Max:3450
Starting Type:SM
Thru-bolts Extension:0
Type of Overload Protector:NONE
UL:Recognized
Voltage:115/230

Resources

Spec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Frequency Rating
60
Horsepower
1/2 HP
Speed Rating
3450
Type
Capacitor Start Induction Run
Voltage Rating
230
