G1200900325G HOF

WALL MT GL. PLATE IP66 UL 4/12
Manufacturer: nVent HOFFMAN
Manufacturer part number: G1200900325G
Availability: Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

nVent HOFFMAN

Type

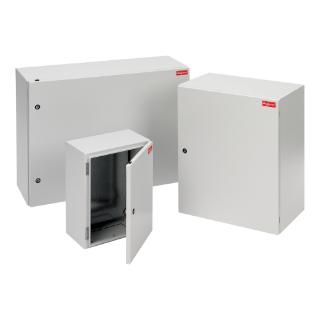

Mild Steel Wall Mounted Industrial Enclosures

Description

Fusion G7 Type 4 and 12, 1200x900X325, Lt Gray, Steel

Application

Controls and Drives

Specifications

Body Thickness (Imperial):14 ga
Body Thickness (Metric):1.9 mm
Color:Light Gray
Color Code:RAL 7035
Country of Origin:US
Depth:12.8
Door Thickness (Imperial):14 ga
Door Thickness (Metric):1.9 mm
Finish:Powder Coat
Height:47.24
IP Rating:IP66
Latch Type:3-pt. Quarter-turn
Material:Mild Steel
Modification Services:Yes
NEMA Rating:12 Indoor, dust-resistant
Panel Size (Imperial):45.47 x 33.66 in
Panel Size (Metric):1155 x 855 mm
Product Family:Fusion G7
Protection Rating:NEMA Type 12
Size:1200x900X325mm
Sub Brand:Fusion G7
Type Number:Type 4
Weight (Imperial):177 lb
Width:35.43
