G294 MAR

Name: G294 MAR
Brand: Marathon Electric Motors
SKU: G294 MAR
Availability: OutOfStock

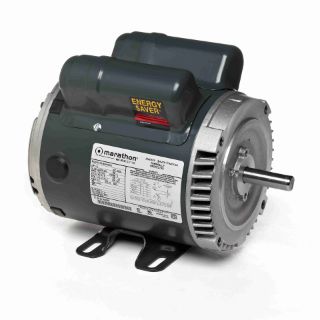

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

G294

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056B34D5307

Features

Shaft end mechanically locked on C-face models Heavy gauge steel constructions Capacitor start/capacitor run design for higher efficiency Continuous duty 56H, 143T, and 145T combination base with 12 mounting holes

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.44
CE:	Y
Connection Drawing Number:	102006-2
Country of Origin:	Mexico
CSA:	Y
Current:	16.8/9.4-8.4
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	77
Electrical Type:	Capacitor Start Capacitor Run
Enclosure Type:	Drip Proof
Frame Length (IN):	7.56
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	HC
Frame Type:	56HC
Frequency:	60
Harmonized Tariff Code:	8501.40.6040
HP:	2
Insulation Class:	B
IP Code:	22
KVA Code:	G
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100168-756
Phases:	1
Power Factor:	98
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.06
Shaft Type:	T
Speed:	3450
Speed Max:	3450
Starting Type:	Across The Line
Type of Overload Protector:	Manual
UL:	Recognized ( Not Protector)
Voltage:	115/208-230
