G583A MAR

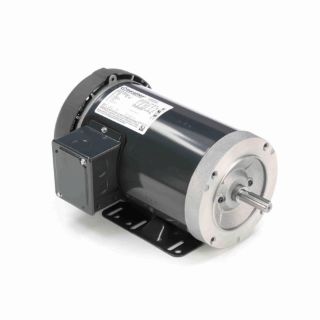

Picture of G583A MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
056T17F15639
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous Duty Low Voltage

Description

Marathon® AC Motor, 4-Pole Continuous Duty Low Voltage, Application Type: General Purpose AC Motors, Special Features: Squirrel Cage Induction Run Motors, 1 hp, 230/460 VAC, 3.3/1.7 A, 60 Hz, 3 ph, 1725 rpm, 1 Speed, IP43 TEFC Enclosure, 56HC Frame, 5/8 in Dia x 2.06 in L Extension Shaft, Reversible, Service Factor: 1.15, Deep Groove Ball Bearing, 3 ft-lb Full Load Torque, Bolt-On Base Mount, 40 deg C, Insulation Class: Class F, Rolled Steel, 14.15 in W x 9.07 in D x 7.35 in H

Standards

CE Certified | CSA Certified | UL Recognized | NEMA Premium® Efficiency | NEMA Design Code: B

Features

Squirrel Cage Induction Run Motors

Specifications

Amperage Rating:3.3/1.7 A
Application Type:General Purpose AC Motors
Bearing Type:Deep Groove Ball
Country of Origin:MX
Dimensions:14.15 in W x 9.07 in D x 7.35 in H
Enclosure Type:IP43 TEFC
Frame:56HC
Frequency Rating:60 Hz
Horsepower:1 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Bolt-On Base
Number of Speeds:1
Phase:3 ph
Rotation:Reversible
Service Factor:1.15
Shaft Size:5/8 in Dia x 2.06 in L Extension
Speed:1725 rpm
Temperature Rating:40 deg C
Torque Rating:3 ft-lb Full Load
Voltage Rating:230/460 VAC

Products Specifications

Horsepower
1 HP
