G586 MAR

Name: G586 MAR
Brand: Marathon Electric Motors
SKU: G586 MAR
Availability: OutOfStock

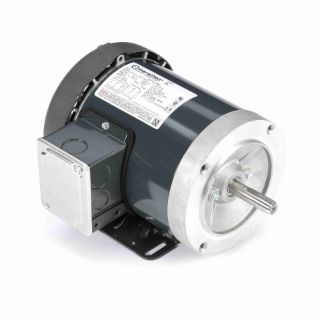

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

G586

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056T11F5311

Features

Mechanically locked on shaft end Class F insulation (except as noted) Rated 60/50 hertz, 190/380 or 380 volt, at next lower horsepower, 56-145T frame motors, accept brake kits, see accessory kits CR200 Corona resistant magnet wire Bolt-on, removable rigid base, for footless mounting option Suitable for horizontal and vertical mounting F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.31
CE:	Y
Connection Drawing Number:	A-EE7308
Country of Origin:	Mexico
CSA:	Y
Current:	1.7-2.0/1.0
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	52.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	6.6
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	C
Frame Type:	56C
Frequency:	60
Harmonized Tariff Code:	8501.51.4040
HP:	0.25
Insulation Class:	F
IP Code:	43
KVA Code:	N
Max Ambient:	40°C
Motor Orientation:	Horizontal Or Up Or Down
Mounting Type:	Bolt-on Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100141-606
Phases:	3
Power Factor:	46.3
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Resistance Main:	18
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	2.06
Shaft Type:	T
Speed:	1140
Speed Max:	1140
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
