GA39 BOS

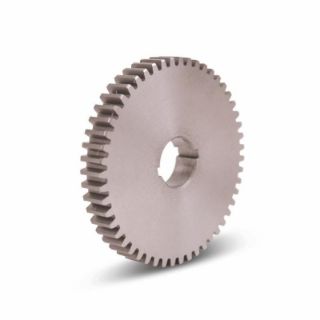

Boston Gear® GA39 GA Series Plain Change Gear With Double Keyway, 20 Pitch, 14.5 deg Angle, 3/8 in Face W, 39 Teeth, 1.95 in Pitch Dia, 5/8 in Bore Dia, Steel
Manufacturer: Boston Gear
Manufacturer part number: GA39
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$47.38

Product Details

Brand Name

Boston Gear®

Type

Plain

Description

Boston Gear® change gears are used primarily on machine tools to provide different cutting speeds while using a constant speed input. All Boston Gear® change gears are manufactured with a double key to accept the compound steel bushings that connect two gears together, allowing them to spin on an intermediate shaft. The change gears we stock range from 20 tooth through 128 tooth gears, in one tooth increments, depending upon the diametrical pitch, for a nearly infinite number of ratio possibilities. Be sure to ask for the Boston Gear® compound steel bushings designed specifically for use with these gears.
Boston Gear® Change Gear With Double Keyway, Plain, Series: GA Series, 5/8 in Bore Dia, 2.05 in Outside Dia, 39 Teeth, 20 Diametral Pitch, 1.95 in, 3/8 in Face Width, No Hub, 3/8 in Overall Length, 14.5 deg Pressure Angle, 1/8 x 1/16 in Keyway, Steel

Application

For parallel shaft applications

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

  • 14.5 deg pressure angle will not operate with 20 deg spurs
  • More cost effective, quieter running and corrosion resistant operation
  • Higher contact ratio for a smoother, quieter operation with 14.5 deg pressure angle

Specifications

Bore Diameter:5/8 in
Country of Origin:US
Diametral Pitch:20
Face Width:3/8 in
Hub Type:No Hub
Keyway Size:1/8 x 1/16 in
Material:Steel
Number of Teeth:39
Outside Diameter:2.05 in
Overall Length:3/8 in
Pitch Diameter:1.95 in
Pressure Angle:14.5 deg
Series:GA Series
