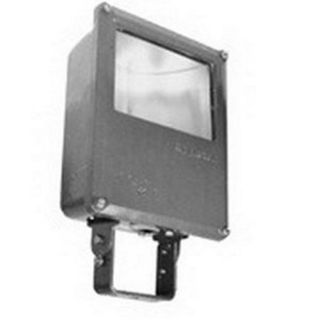

Actual Product May Vary From Image

GAM371LMTI2 APN

Name: GAM371LMTI2 APN
Brand: Appleton
SKU: GAM371LMTI2 APN
Availability: OutOfStock

AREAMASTR 100W CLASS I DIV. II

Manufacturer: Appleton

Manufacturer part number: G-AM371L-MTI/2

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Areamaster 100

Type

Wide-Beam Floodlight

Description

Appleton G-AM371L-MTI/2 Areamaster 100 Wide-Beam Floodlight, Fixture Type: Yoke Mount, Lamp Type: 100 WTT Mogul High Pressure Sodium, Lamp Wattage: 100 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Cover, Silicone Rubber Gasket, Porcelain Socket, Zinc Plated Steel Yoke Mount, Stainless Steel Bolts, Fixture Wattage: 130 WTT, Amperage Rating: 0.6 AMP Starting, 0.52 AMP Operating At 277 V, Length: 11 IN, Width: 5.31 IN, Height: 19.5 IN, Housing Finish: Architectural Bronze Polyester, Housing Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 40 DEG C, Temperature Range: 216 - 230 DEG C, Lens Material: Thermal Shock And Impact-Resistant Glass, Ballast Type: HX-HPR, Ballast Quantity: 1, Reflector/Refractor: Alzak Finished Aluminum Reflector, Standard: NEC: For Classified Duty Class I, Division 2, Groups A, B, C, D; UL Listed: E10794, 1598, 1598A, 844; CSA Certified: LR25428, For Facades, Amusement And Recreational Areas, Parking Lots, Industrial And Marine Use

Application

For Facades, Amusement And Recreational Areas, Parking Lots, Industrial And Marine Use

Standards

NEC: For Classified Duty Class I, Division 2, Groups A, B, C, D; UL Listed: E10794, 1598, 1598A, 844; CSA Certified: LR25428

Features

Areamaster floodlights provide efficient, weatherproof, wide-beam lighting for a variety of general applications as well as marine and hazardous location service; Attractively styled and ruggedly built for dependable, vandal resistant service; Easy to install, aim and service with easy access to spacious interior; Integral ballast; One piece housing; One piece lens cover, secured by captive stainless steel bolts; Thermal shock and impact-resistant glass lens; Heavy duty, high temperature silicone rubber gasket; Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and spring loaded center contact; Parabolic finished aluminum reflector for optimum efficiency; Highly efficient, all-weather flood-lighting for lower wattage service; Marine type electric fixtures, outside type (saltwater)

Specifications

Ambient Temperature Range:	40 DEG C
Amperage Rating:	0.6 AMP Starting, 0.52 AMP Operating At 277 V
Ballast Quantity:	1
Ballast Type:	HX-HPR
Country of Origin:	USA
Fixture Type:	Yoke Mount
Fixture Wattage:	130 WTT
Height:	19.5 IN
Housing Finish:	Architectural Bronze Polyester
Housing Material:	Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Lamp Type:	100 WTT Mogul High Pressure Sodium
Lamp Wattage:	100 WTT
Length:	11 IN
Lens Material:	Thermal Shock And Impact-Resistant Glass
Material:	Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Cover, Silicone Rubber Gasket, Porcelain Socket, Zinc Plated Steel Yoke Mount, Stainless Steel Bolts
Number of Lamps:	1
Temperature Range:	216 - 230 DEG C
Voltage Rating:	120/208/240/277 V
Width:	5.31 IN

Resources

Brochure Spec Sheet Warranty
