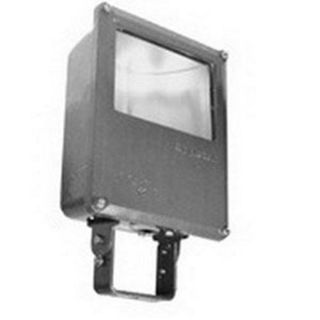

Actual Product May Vary From Image

GAM471LMTI2 APN

Name: GAM471LMTI2 APN
Brand: Appleton
SKU: GAM471LMTI2 APN
Availability: OutOfStock

Appleton® Areamaster™ G-AM471L-MTI/2 250/400 Floodlight Fixture,) High Pressure Sodium Lamp, 188 W Fixture, 120/208/240/277 VAC, Architectural Bronze Housing

Manufacturer: Appleton

Manufacturer part number: G-AM471L-MTI/2

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton® Areamaster™ Floodlight Fixture, Series: 250/400, 120/208/240/277 VAC, 188 W Fixture, 1.7/0.95/0.85/0.72 A, High Pressure Sodium Lamp, 150 W Lamp, Mogul Lamp Base, HX-HPF Ballast, Glass Lens, IP66 Enclosure, Yoke Mounting, Aluminum Housing Material, Architectural Bronze Housing Finish, 16.14 in H x 16.92 in W x 7.36 in D Dimensions

Application

For pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, food processing plants, storage areas, waste and sewage treatment, parking garages and other areas where water, dirt and rough usage are a problem

Standards

UL 1598, 1598A, 844, File No. E10794 | CSA C22.2 No. 25, C22.2 No. 94, C22.2 No. 97, C22.2 No. 137, File No. LR25248, Class I, Div 2, Groups A, B, C, D, Class I, Zone 2, AEx nR, Ex nR, Groups IIA, IIB, IIC, Class II, Div 1 and 2, Groups E, F, G, Class III

Features

Compact in size, attractively styled contemporary design, rugged and dependable
Easy to install and service
Wide range of ballasts and voltages are available for both domestic and export applications
One piece housing
One piece lens cover and secured by (4) 1/4 in Dia captive stainless steel slotted hex-head bolts
Thermal shock and impact-resistant glass lens
Heavy duty, high temperature silicone rubber gasket, firmly seated
Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and springloaded center contact
Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
(1) yoke mount, zinc plated steel yoke with architectural bronze polyester finish (2) pole mount, built-in slip-fitter, for internal wiring, adjustable laterally and vertically, slip fits 50.8 mm (2 in) thru 63.5 mm (2.50 in) pipe, architectural bronze polyester finish available for use in CEC governed locations
Cool operating temperatures translate into long luminarie life
For hazardous and marine locations
60 Hz frequency
Integral ballast
3814 cu-in volume
Division 2
2 A (starting)/1.7 A (operating) at 120 VAC, 1.15 A (starting)/0.95 A (operating) at 208 VAC, 1 A (starting)/0.85 A (operating) at 240 VAC, 0.85 A (starting)/0.72 A (operating) at 277 VAC amperage rating

Specifications

Amperage Rating:	1.7/0.95/0.85/0.72 A
Ballast Type:	HX-HPF
Country of Origin:	MX
Dimensions:	16.14 in H x 16.92 in W x 7.36 in D
Enclosure Type:	IP66
Fixture Wattage:	188 W
Housing Finish:	Architectural Bronze
Housing Material:	Aluminum
Lamp Base Type:	Mogul
Lamp Type:	High Pressure Sodium
Lamp Wattage:	150 W
Lens Type:	Glass
Mounting Type:	Yoke
Series:	250/400
Voltage Rating:	120/208/240/277 VAC
