GAM671P5MTI2 APN

Name: GAM671P5MTI2 APN
Brand: Appleton
SKU: GAM671P5MTI2 APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

GAM671P5MTI2

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Type

Explosionproof HID

Description

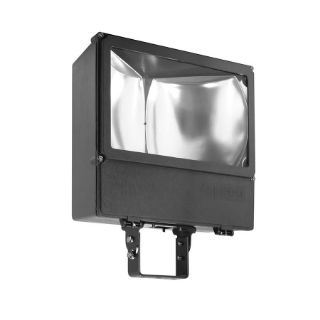

The Areamaster™ 250/400 integrally ballasted floodlights are powerful, efficient weatherproof lighting fixtures for medium and large areas These rugged, enclosed and gasketed fixtures are designed for Class I, Division 2/Zone 2 and severe non-hazardous environments. The Areamaster features a corrosion resistant, a 1-piece, pressure cast, copper-free aluminum housing with an architectural bronze polyester finish. Its compound parabolic and double segment design, with an Alzak finished aluminum reflector, provides optimum light distribution and efficiency.

Appleton® Areamaster™ Floodlight Fixture, Explosionproof HID, Series: 250/400, 120/208/240/277 VAC, 235 W Fixture, 0.75/0.85/1/1.1/1.15/1.25/2.1/2 A, Pulse Start Metal Halide Lamp, 250 W Lamp, Mogul Lamp Base, Super Constant Wattage Autotransformer (SCWA) Ballast, Glass Lens, IP66 Enclosure, Yoke Mounting, Copper-Free Aluminum Housing Material, Architectural Bronze Polyester Housing Finish, 21.26 in H x 16.92 in W x 7.36 in D Dimensions

Application

Pulp and Paper Mils, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Waste and Sewage Treatment, Parking Garages and other Areas Where Dust, Water, Dirt and Rough Usage are a Problem, Hazardous, Marine and Wet Locations

Standards

UL 1598, 1598A, 844 | UL File No. E10794 | CSA C22.2 No. 25, C22.2 No. 94, C22.2 No. 97, C22.2 No. 137, LR25248 | NEC Class I, Division 2, Groups A, B, C, D

Features

Compact in size, attractively styled contemporary design, rugged and dependable
A wide range of ballasts and voltages are available for both domestic and export applications1-piece housing with 1-piece lens cover
The cover is secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
Thermal shock and impact resistant glass lens
Heavy duty, high temperature silicone rubber gasket, firmly seated
Heavy duty mogul base porcelain socket with heavy gauge brass, nickel plated, double lamp grip screw shell and spring loaded center contact
Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
Cool operating temperatures translate into long luminaire life
2.1 A at 120 VAC, 1.15 A at 208 VAC, 1.10 A at 240 VAC, 0.75 A at 277 VAC starting, 2 A at 120 VAC, 1.25 A at 208 VAC, 1 A at 240 VAC, 0.85 A at 277 VAC operating 60 Hz

Specifications

Amperage Rating:	0.75/0.85/1/1.1/1.15/1.25/2.1/2 A
Ballast Type:	Super Constant Wattage Autotransformer (SCWA)
Country of Origin:	MX
Dimensions:	21.26 in H x 16.92 in W x 7.36 in D
Enclosure Type:	IP66
Fixture Wattage:	235 W
Housing Finish:	Architectural Bronze Polyester
Housing Material:	Copper-Free Aluminum
Lamp Base Type:	Mogul
Lamp Type:	Pulse Start Metal Halide
Lamp Wattage:	250 W
Lens Type:	Glass
Mounting Type:	Yoke
Series:	250/400
Voltage Rating:	120/208/240/277 VAC
