GAM775PMT APN

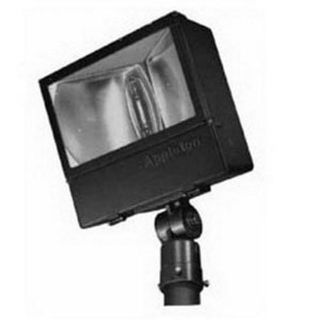

Name: GAM775PMT APN
Brand: Appleton
SKU: GAM775PMT APN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Appleton

Manufacturer part number:

G-AM775P-MT

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Appleton®

Description

Appleton® Areamaster™ Slip-fit Floodlight Fixture, Series: GAM, 120/208/240/277 VAC, 454 W Fixture, 1.75 A, Pulse Start Metal Halide Lamp, 400 W Lamp, Mogul Lamp Base, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, 110000 Lumens, Integral Pole Mounting, Aluminum Housing Material, Architectural Bronze Polyester Coated Housing Finish, 25 in H x 17-1/16 in W x 7-3/8 in D Dimensions

Application

Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Parking Garages, Waste and Sewage Treatment Applications

Standards

UL 1598 | UL 1598A | UL 844 File No. E10794 | CSA C22.2 No. 25/94/97/137 File No. LR25248

Features

Compact in size, attractively styled contemporary design, rugged and dependable
Easy to install and service
A wide range of ballasts and voltages are available for both domestic and export applications
Integral ballast
1-piece housing
1-piece lens cover
Secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
Thermal shock and impact resistant glass lens standard
Heavy duty, high temperature silicone rubber gasket, firmly seated
Heavy duty mogul-base porcelain socket with heavy gauge brass, nickel plated, double lamp-grip screw shell and spring loaded center contact
Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
1.5 A starting, 1.75 A at 277 VAC current rating

Specifications

Amperage Rating:	1.75 A
Ballast Type:	Constant Wattage Autotransformer (CWA)
Country of Origin:	MX
Dimensions:	25 in H x 17-1/16 in W x 7-3/8 in D
Fixture Wattage:	454 W
Housing Finish:	Architectural Bronze Polyester Coated
Housing Material:	Aluminum
Lamp Base Type:	Mogul
Lamp Type:	Pulse Start Metal Halide
Lamp Wattage:	400 W
Lens Type:	Glass
Lumens:	110000 Lumens
Mounting Type:	Integral Pole
Series:	GAM
Voltage Rating:	120/208/240/277 VAC
