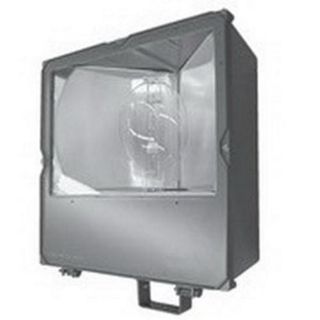

Actual Product May Vary From Image

GAM861H48I2 APN

Name: GAM861H48I2 APN
Brand: Appleton
SKU: GAM861H48I2 APN
Availability: OutOfStock

Appleton® Areamaster™ G-AM861H-48-I/2 1000 Floodlight Fixture, (1) HID Metal Halide Lamp, 1080 W Fixture, 480 VAC, Bronze/Polyester Housing

Manufacturer: Appleton

Manufacturer part number: G-AM861H-48-I/2

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton® Areamaster™ Floodlight Fixture, Series: 1000, 480 VAC, 1080 W Fixture, 2.3 A, HID Metal Halide Lamp, 1000 W Lamp, Mogul Lamp Base, 1 Lamp, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, Yoke Mounting, Aluminum Housing Material, Bronze/Polyester Housing Finish, 26-3/4 in H x 22 in W x 11 in D Dimensions

Application

For pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, food processing plants, storage areas, waste and sewage treatment, parking garages and other areas where water, dirt and rough usage are a problem

Standards

UL 1598 | 844 | File No. E10794

Features

Highly efficient, integrally ballasted floodlight
Compact, lightweight, yet rugged die-cast aluminum construction
Combines architecturally beautiful design with rugged dependability, simple installation and maintenance
Easy to install and service
Wide range of ballasts and voltages are available for both domestic and export applications
Heavy duty, high temperature silicone rubber gasket, firmly seated
Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and springloaded center contact
Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
3/4 in NPT tapped hub for power entry
Thermal shock and impact-resistant glass lens
Nickel-plated material socket finish
Heavy duty porcelain with heavy gauge brass shell
Zinc plated steel material yoke mount
Stainless steel material bolts
60 Hz frequency
Division 2 hazardous rating
2 A (starting)/2.3 A (operating) amperage rating
0.9 A (starting)/1 A (operating) at 480 VAC amperage rating

Specifications

Amperage Rating:	2.3 A
Ballast Type:	Constant Wattage Autotransformer (CWA)
Country of Origin:	MX
Dimensions:	26-3/4 in H x 22 in W x 11 in D
Fixture Wattage:	1080 W
Housing Finish:	Bronze/Polyester
Housing Material:	Aluminum
Lamp Base Type:	Mogul
Lamp Type:	HID Metal Halide
Lamp Wattage:	1000 W
Lens Type:	Glass
Mounting Type:	Yoke
Number of Lamps:	1
Series:	1000
Voltage Rating:	480 VAC
