GAM861HMTI2 APN

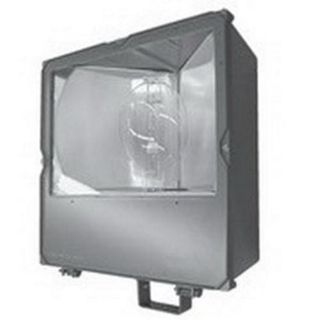

Picture of GAM861HMTI2 APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-AM861H-MT-I/2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Type

Hi-Lumen

Description

Appleton® Areamaster™ Floodlight Fixture, Hi-Lumen, Series: GAM, 120/208/240/277 VAC, HID Metal Halide Lamp, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 67 CRI, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, NEMA 4X/IP66 Enclosure, Yoke Mounting, Aluminum Housing Material, Architectural Bronze Polyester Coated Housing Finish

Application

Pulp, Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Parking Garages, Waste and Sewage Treatment Applications

Standards

UL 1598 | UL 1598A | UL 844 File No. E10794 | CSA C22.2 No. 25/94/97/137 File No. LR25248

Features

  • Compact in size, attractively styled contemporary design, rugged and dependable
  • Easy to install and service
  • A wide range of ballasts and voltages are available for both domestic and export applications
  • Integral ballast
  • One-piece housing
  • One-piece lens cover
  • Secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
  • Thermal shock and impact resistant glass lens
  • Heavy duty, high temperature silicone rubber gasket, firmly seated
  • Heavy duty mogul-base porcelain socket with heavy gauge brass, nickel plated, double lamp-grip screw shell and spring loaded center contact
  • Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
  • 3.5 A starting, 4 A at 277 VAC amperage rating
  • Copper free aluminum housing
  • Locations requiring continuous and consistent light levels
  • Areas requiring frequent on-and-off of lights
  • Where extremely corrosive, wet, dusty, hot and/or cold conditions exist, indoors or outdoors
  • NEMA 4X, marine, wet locations and hose down environments
  • For indoor and outdoor area lighting in plants, buildings and parking areas
  • Used in manufacturing plants, heavy industrial, chemical, petrochemical or pharmaceutical facilities, platforms, loading docks, outdoor mounted general area lighting
  • Used in ball mills, stackers and reclaimers, concentrators, smelters, mine roadways, outdoor processing areas, truck service shops, shovels and drag lines

Specifications

Average Life:100000 hr
Ballast Type:Constant Wattage Autotransformer (CWA)
Color Rendering Index (CRI):67
Color Temperature:5000 K
Country of Origin:MX
Enclosure Type:NEMA 4X/IP66
Housing Finish:Architectural Bronze Polyester Coated
Housing Material:Aluminum
Lamp Type:HID Metal Halide
Lens Type:Glass
Light Color:Cool White
Mounting Type:Yoke
Series:GAM
Voltage Rating:120/208/240/277 VAC
