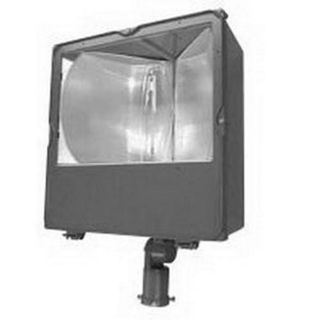

Actual Product May Vary From Image

GAM865H48 APN

Name: GAM865H48 APN
Brand: Appleton
SKU: GAM865H48 APN
Availability: OutOfStock

Appleton® Areamaster™ G-AM865H-48 1000 Floodlight Fixture,) HID Metal Halide Lamp, 1080 W Fixture, 480 VAC, Architectural Bronze Housing

Manufacturer: Appleton

Manufacturer part number: G-AM865H-48

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton® Areamaster™ Floodlight Fixture, Series: 1000, 480 VAC, 1080 W Fixture, 2/2.3 A, HID Metal Halide Lamp, 1000 W Lamp, Mogul Lamp Base, Constant Wattage Autotransformer (CWA) Ballast, Impact-Resistant Glass Lens, Pole/Slipfitter Mounting, Aluminum Housing Material, Architectural Bronze Housing Finish, 26-3/4 in H x 22 in W x 11 in D Dimensions

Application

For pulp and paper mills, processing plants, chemical plants, oil refineries, foundries, food processing plants, storage areas, waste and sewage treatment, parking garages and other areas where water, dirt and rough usage are a problem

Standards

NEC/CEC Certified | UL 1598/844 | UL File No. E10794

Features

Highly efficient, integrally ballasted floodlight
Combines architecturally beautiful design with rugged dependability, simple installation and maintenance
A wide range of ballasts and voltages are available for both domestic and export applications
One piece housing with one piece lens cover and the cover is secured by (4) 1/4 in Dia captive stainless steel slotted hex-head bolts
Thermal shock and impact-resistant glass lens
Heavy duty, high temperature silicone rubber gasket, firmly seated
Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and springloaded center contact
Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
Yoke mount, zinc plated steel yoke with architectural bronze polyester finish
3/4 in NPT tapped hub for power entry
2 A (tarting)/2.3 A (operating) amperage rating
Heavy duty porcelain with heavy gauge brass shell socket material
Finished aluminum reflector material
Zinc plated steel yoke mount material
Stainless steel bolt material
Nickel-plated socket finish
60 Hz frequency
1.9 A (starting)/2.5 A (operating) at 120 VAC, 1.1 A (starting)/1.45 A (operating) at 208 VAC, 0.96 A (starting)/1.25 A (operating) at 240 VAC, 0.85 A (starting)/1.1 A (operating) at 277 VAC amperage rating

Specifications

Amperage Rating:	2/2.3 A
Ballast Type:	Constant Wattage Autotransformer (CWA)
Country of Origin:	MX
Dimensions:	26-3/4 in H x 22 in W x 11 in D
Fixture Wattage:	1080 W
Housing Finish:	Architectural Bronze
Housing Material:	Aluminum
Lamp Base Type:	Mogul
Lamp Type:	HID Metal Halide
Lamp Wattage:	1000 W
Lens Type:	Impact-Resistant Glass
Mounting Type:	Pole/Slipfitter
Series:	1000
Voltage Rating:	480 VAC
