GAM865HMT APN

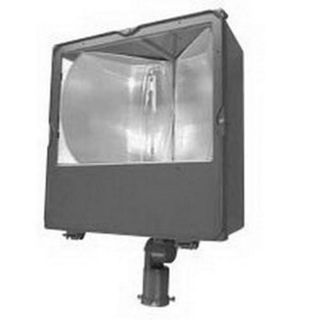

Picture of GAM865HMT APN
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
G-AM865H-MT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Appleton®

Description

Appleton® Areamaster™ Slip-fit Floodlight Fixture, 120/208/240/277 VAC, 1080 W Fixture, 0.16 A, HID Metal Halide Lamp, 1000 W Lamp, Constant Wattage Autotransformer (CWA) Ballast, Glass Lens, 110000 Lumens, NEMA 3R/4/4X/IP66/IP67 Enclosure, Integral Pole Mounting, Aluminum Housing Material, Architectural Bronze Polyester Coated Housing Finish, 30-7/8 in H x 22 in W x 11 in D Dimensions

Application

Pulp and Paper Mills, Processing Plants, Chemical Plants, Oil Refineries, Foundries, Storage Areas, Parking Garages, Waste and Sewage Treatment Applications

Standards

UL 1598 | UL 1598A | UL 844 File No. E10794 | CSA C22.2 No. 25/94/97/137 File No. LR25248

Features

  • Compact in size, attractively styled contemporary design, rugged and dependable
  • Easy to install and service
  • A wide range of ballasts and voltages are available for both domestic and export applications
  • Integral ballast
  • 1-piece housing
  • 1-piece lens cover
  • Secured by four 1/4 in Dia captive stainless steel slotted hex head bolts
  • Thermal shock and impact resistant glass lens standard
  • Heavy duty, high temperature silicone rubber gasket, firmly seated
  • Heavy duty mogul-base porcelain socket with heavy gauge brass, nickel plated, double lamp-grip screw shell and spring loaded center contact
  • Compound parabolic, double segment, finished aluminum reflector for optimum efficiency
  • 3.5 A starting, 4 A at 277 VAC current rating
  • 3/4 in NPT hub
  • Metalized high reflectance finish reflector
  • 50/60 Hz frequency rating
  • Copper free aluminum housing and lens door, silicone rubber gasket, stainless steel bolts, (2) aluminum provided close-up plugs, zinc plated steel yoke mount

Specifications

Amperage Rating:0.16 A
Ballast Type:Constant Wattage Autotransformer (CWA)
Country of Origin:MX
Dimensions:30-7/8 in H x 22 in W x 11 in D
Enclosure Type:NEMA 3R/4/4X/IP66/IP67
Fixture Wattage:1080 W
Housing Finish:Architectural Bronze Polyester Coated
Housing Material:Aluminum
Lamp Type:HID Metal Halide
Lamp Wattage:1000 W
Lens Type:Glass
Lumens:110000 Lumens
Mounting Type:Integral Pole
Voltage Rating:120/208/240/277 VAC
