GBL300 NER

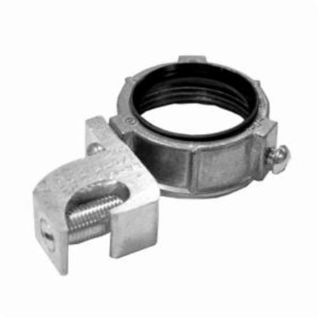

Picture of GBL300 NER
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
GBL-300
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$19.13 / EA

Description

Brand Name

Appleton®

Description

Appleton® NEER™ Grounding Bushing, Series: GBL, 14 to 4 AWG AC Cable Size, 1 in Trade, Insulated Insulated/Non-Insulated, 302 deg F, Threaded Mounting, Zinc, 1.53 in Dia x 0.6 in THK Dimensions

Application

For use with a locknut to terminate rigid metal conduit or IMC conduit to a box or enclosure

Standards

CSA Certified | UL Listed

Features

  • For rigid and IMC conduit
  • Low surface friction permits pulling of wires with virtually no abrasion on the cable insulation
  • Set screw provided with each fitting locks bushing in any desired position
  • For use with copper or aluminum grounding conductors
  • Zinc body, tin plated aluminum lug, zinc plated steel clamping and set screws
  • Threaded (NPS) for rigid conduit and IMC
  • Provides a means of grounding conduit through an insulated bushing

Specifications

AC Cable Size:14 to 4 AWG
Country of Origin:IN
Dimensions:1.53 in Dia x 0.6 in H
Insulated/Non-Insulated:Insulated
Material:Zinc
Mounting Type:Threaded
Series:GBL
Temperature Rating:150 deg C
Trade Size:1 in

Products Specifications

Brand Name
Appleton
Material
Zinc
Size
1 in
Type
Insulated Grounding Bushing
