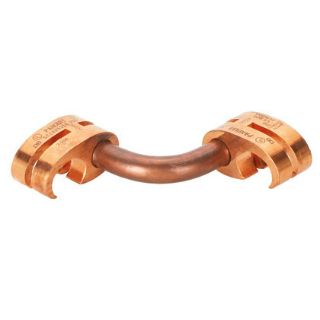

Actual Product May Vary From Image

GCC6X61/0-1/0 PAN

Name: GCC6X61/0-1/0 PAN
Brand: Panduit
SKU: GCC6X61/0-1/0 PAN
Availability: OutOfStock

Panduit® GCC6X61/0-1/0 Type GCC Cross Grounding Connector, 6 AWG Min Run/Tap, 1/0 AWG Max Run/Tap

Manufacturer: Panduit

Manufacturer part number: GCC6X61/0-1/0

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Panduit®

Type

Type GCC

Description

The Panduit® StructuredGround™ Direct Burial Compression Grounding System provides the highest performance and most reliable compression connection in the industry. This system offers the speed and safety of a compression connection, while complying with the industry requirements of IEEE Std. 837. The fully inspectable system that is UL 467 Listed and CSA 22.2 Certified, ensures that the installed product operates safely. Wide range-taking and universal designs provide installation flexibility with a minimum number of parts, reducing procurement and inventory costs. Innovative features assure a high quality bond, reducing labor costs and improving crimp quality.

Panduit®, GCC6X61/0-1/0, Grounding Connector, Type GCC Cross, 6 AWG Minimum Run/Tap, 1/0 AWG Maximum Run/Tap, Solid/Stranded Copper Conductor, Specifications: PG10 Die Index, Red, 0.94 in L x 0.66 in W x 1.37 in H (Element A/B) Dimensions

Application

For direct burial in earth or concrete, oil an gas, industrial facilities, cell towers and construction applications

Standards

Features

Only a single die required to crimp each element, which speed installations and reduces cost
Wide range taking ability and multi-conductor design provide flexibility with a minimum number of part, allowing for conductor to conductor, conductor to rebar and conductor to ground rod applications
Designed for the enhanced crimp process using patent pending technology meet IEEE 837 2002
Slotted design allows quick and easy assembly of conductor to connector using Panduit® cable ties
Pre-applied conductive antioxidant compound ensures a high quality mechanical and electrical bond, speeding installations
Color coded and marked with Panduit® die index numbers for proper crimp die selection

Specifications

Color:	Red
Conductor Type:	Solid/Stranded Copper
Country of Origin:	MX
Dimensions:	0.94 in L x 0.66 in W x 1.37 in H
Material:	Copper
Maximum Run/Tap:	1/0 AWG
Minimum Run/Tap:	6 AWG
Rod Size:	3/8 in
Specifications:	PG10 Die Index
