GD40B BOS

Boston Gear® change gears are used primarily on machine tools to provide different cutting speeds while using a constant speed input. All Boston Gear® change gears are manufactured with a double key to accept the compound steel bushings that connect two gears together, allowing them to spin on an intermediate shaft. The change gears we stock range from 20 tooth through 128 tooth gears, in one tooth increments, depending upon the diametrical pitch, for a nearly infinite number of ratio possibilities. Be sure to ask for the Boston Gear® compound steel bushings designed specifically for use with these gears.

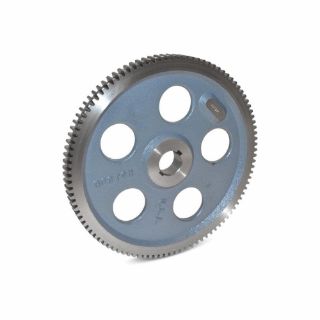

Boston Gear® Change Gear With Double Keyway, Plain, Series: GD Series, 1 in Bore Dia, 3-1/2 in Outside Dia, 40 Teeth, 12 Diametral Pitch, 3.333 in, 3/4 in Face Width, 1.76 in Hub Dia, 14.5 deg Pressure Angle, 1/4 x 1/8 in Keyway, Cast Iron
